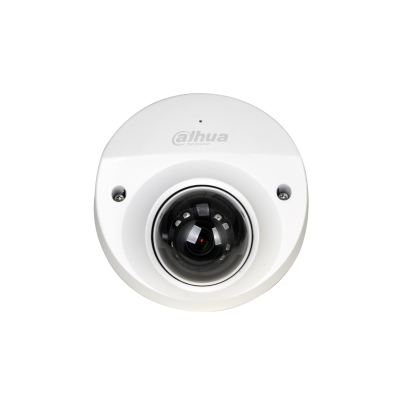

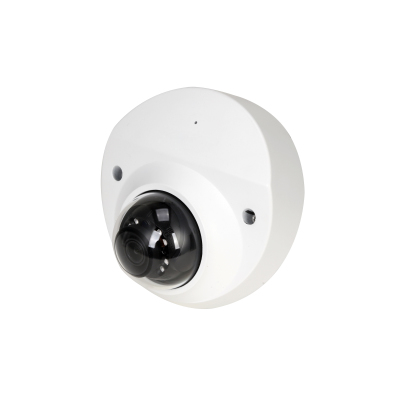

Dahua Technology WizMind DH-IPC-HDBW5241F-M-SA security camera Dome IP security camera Indoor & outdoor
Dahua Technology

WizMind DH-IPC-HDBW5241F-M-SA security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model DH-IPC-HDBW5241F-M-SA

96 specifications
  • Memory512 MB
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight380 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired & Wireless
Type
IP security camera
Weight
380 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW5241F-M-SA
Part number
DH-IPC-HDBW5241F-M-SA
Also known as
Dahua Technology WizMind DH-IPC-HDBW5241F-M-SA security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

96 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
People counting functionYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 E-MARK: ECE Regulation 10.05

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal106°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal126°
Tilt angle range0 - 80°
Pan range-30 - 30°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100,000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Detect distance38.6 m
Observe distance15.4 m
Recognize distance7.7 m
Fixed focusYes
Identify distance3.9 m
Maximum aperture number1.6
Closest focusing distance0.6 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs8

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedG.711 A-law, G.711 μ-law, G.723, G.726, PCM
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Bit rate range12 - 8192 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Heat map, Intrusion, Missing object, People counting, Tripwire
MirrorYes
Network access storage (NAS)Yes
Video motion detectionYes

Management features

Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)1.6 W
Power consumption (max)4.4 W
Power consumption (Power over Ethernet (PoE))2.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height55 mm
Diameter10.9 cm
Weight380 g

Packaging data

Package weight520 g

Packaging content

Number of cameras1

Other features

Browser supportedIE: IE8 and later Chrome Firefox Safari: Safari12 and later

Technical details

Number of video streams3
