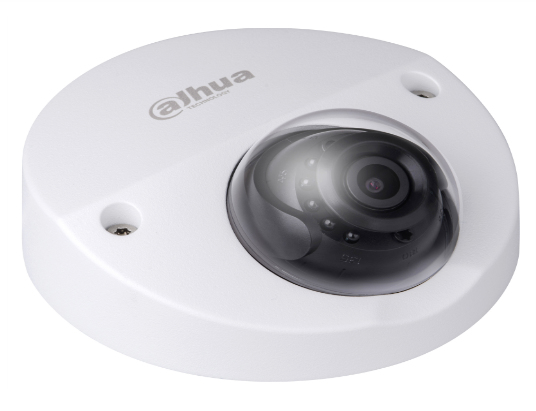

Dahua Technology DH-IPC-HDBW44A1FN-AS Dome IP security camera Outdoor

Dahua Technology DH-IPC-HDBW44A1FN-AS Dome IP security camera Outdoor

2688 x 1520 pixels Ceiling/wall

Model DH-IPC-HDBW44A1FN-ASPart no. DH-IPC-HDBW44A1FN-AS-6MM

82 specifications
  • Memory16 MB
  • Storage128 GB
  • ConnectivityWired
  • TypeIP security camera
  • Weight340 g
  • ColourWhite
See all specifications

Overview

Memory
16 MB
Storage
128 GB
Connectivity
Wired
Type
IP security camera
Weight
340 g
Colour
White
Brand
Dahua Technology
Model
DH-IPC-HDBW44A1FN-AS
Part numbers
DH-IPC-HDBW44A1FN-AS-6MM, DH-IPC-HDBW44A1FN-AS-2.8MM, DH-IPC-HDBW44A1FN-AS-3.6MM
Also known as
Dahua Technology DH-IPC-HDBW44A1FN-AS Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

82 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Remote viewingYes
CertificationFCC (SEFV1506088-A ) UL (E234884-A77-UL)

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresVandal proof
International Protection (IP) codeIP67
WeatherproofYes

Camera

Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal56°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Custom modes, Outdoor, Sunny
Camera shutter typeElectronic
Camera shutter speed1/3(4) - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom16x
Maximum aperture number2
Fixed focal length6 mm

Night vision

Night visionYes
Night vision distance20 m
LED typeIR
Number of illumination LEDs12

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, M-JPEG
Video compression formatsH.264, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Supported video modes240p, 480p, 576p, 720p, 1080p, 1520p
Frame rate20 fps
Noise reductionYes
Automatic gain controlYes
Flip & mirrorYes
Full HDYes
Privacy maskingYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDYes
HDD capacity128 GB
Flash memory256 MB
Internal memory16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
InterfaceRJ-45

Security

HTTPS encryptionYes
Motion sensorYes
Security algorithms802.1x RADIUS, HTTPS, SMTP-AUTH, SNMP, SSL/TLS

Power

Power source typePoE
Power consumption (max)4.6 W
DC output voltage12
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height50.3 mm
Diameter10.6 cm
Weight340 g

Packaging data

Package weight470 g

Packaging content

Number of cameras1

Technical details

Audio input1

Other features

Audio output1
Browser supportedIE10
