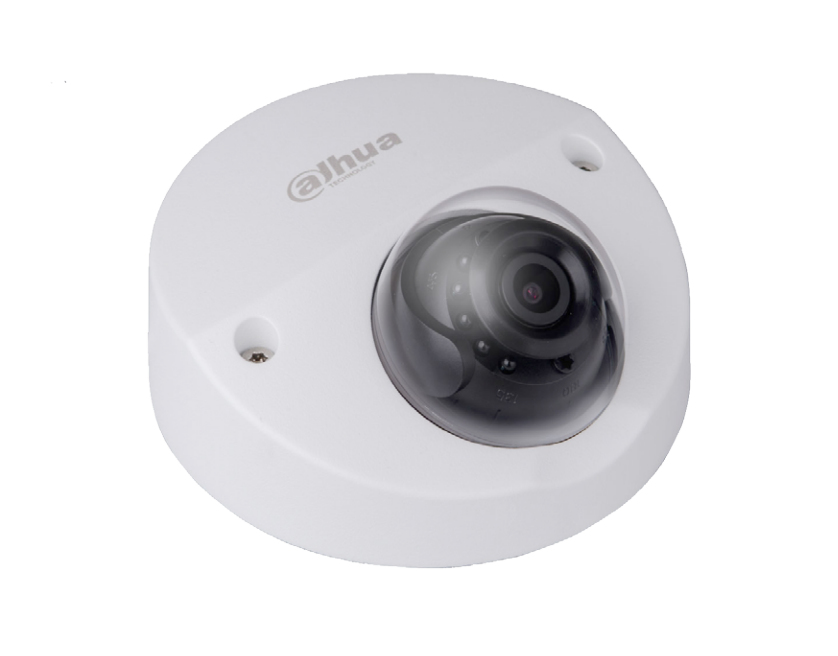

Dahua Technology Eco-savvy 3.0 DH-IPC-HDBW4231F-AS security camera Dome IP security camera Indoor

Dahua Technology Eco-savvy 3.0 DH-IPC-HDBW4231F-AS security camera Dome IP security camera Indoor

1920 x 1080 pixels

Model DH-IPC-HDBW4231F-AS

80 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight400 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.009 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
400 g
Colour
White
Form factor
Dome
Minimum illumination
0.009 lx
Brand
Dahua Technology
Model
DH-IPC-HDBW4231F-AS
Part numbers
DH-IPC-HDBW4231F-AS, HDBW4231FP-AS-0280, HDBW4231FP-AS-0360, HDBW4231FP-AS-0600
Also known as
Dahua Technology Eco-savvy 3.0 DH-IPC-HDBW4231F-AS security camera Dome IP security camera Indoor 1920 x 1080 pixels

Specifications

80 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE, UL, FCC

Design

Form factorDome
Product colourWhite
Housing materialMetal
Protection featuresVandal proof
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.009 lx
Angle of rotation360°
Tilt angle range0 - 80°
Pan range0 - 60°
White balanceAuto, Manual
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Zoom capabilityYes
Digital zoom16x
Fixed focusYes
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance20 m
LED typeIR
Number of illumination LEDs10

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.264+, H.265, H.265+
Supported video modes720p, 1080p
Frame rate60 fps
Video streamingYes
Noise reductionYes
3D NR (Noise Reduction)Yes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedAAC
Signal-to-Noise Ratio (SNR)50 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjo
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)4.5 W
DC output voltage12
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C

Weight & dimensions

Height50.3 mm
Diameter10.6 cm
Weight400 g

Packaging data

Package weight440 g

Packaging content

Number of cameras1
