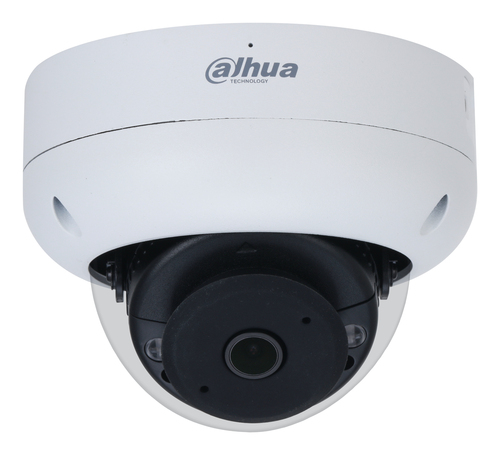

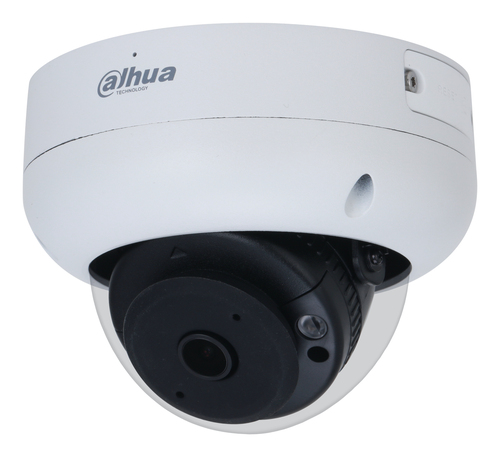

Dahua Technology WizSense DH-IPC-HDBW3466R-AS-P security camera Dome IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-IPC-HDBW3466R-AS-P security camera Dome IP security camera Indoor & outdoor

2880 x 1620 pixels Ceiling

Model DH-IPC-HDBW3466R-AS-P

84 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW3466R-AS-P
Part number
DH-IPC-HDBW3466R-AS-P
Also known as
Dahua Technology WizSense DH-IPC-HDBW3466R-AS-P security camera Dome IP security camera Indoor & outdoor 2880 x 1620 pixels Ceiling

Specifications

84 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.001 lx
Angle of rotation355°
Tilt angle range0 - 80°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/100000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera)56 dB

Lens system

Number of lenses1
Detect distance52 m
Observe distance20.8 m
Recognize distance10.4 m
Fixed focusYes
Identify distance5.2 m
Closest focusing distance0.6 m
Fixed focal length2.1 mm

Night vision

Night visionYes
Night vision distance15 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2880 x 1620 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.264B, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2688 x 1520, 2880 x 1620
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711 A-law, G.711 μ-law, G.723, G.726, PCM
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity128 MB
RAM capacity512 MB

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Security algorithmsHTTPS
Video motion detectionYes

Management features

Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)3.2 W
Power consumption (max)6.4 W
Power consumption (Power over Ethernet (PoE))3.9 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height94 mm
Diameter12.2 cm
Weight500 g

Packaging data

Package weight770 g

Packaging content

Number of cameras1
