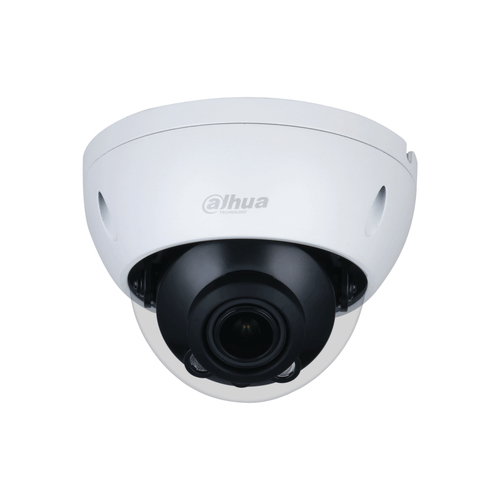

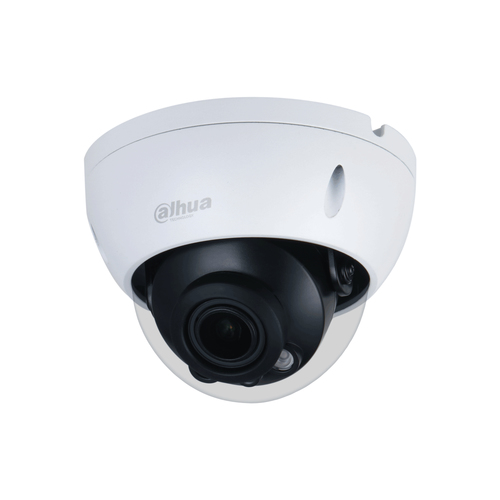

Dahua Technology WizSense DH-IPC-HDBW3441RP-ZS Dome IP security camera Indoor
Dahua Technology

WizSense DH-IPC-HDBW3441RP-ZS Dome IP security camera Indoor

2688 x 1520 pixels Ceiling

Model DH-IPC-HDBW3441RP-ZSPart no. DH-IPC-HDBW3441RP-ZS-27135EAN 6939554977558

87 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight492 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
492 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW3441RP-ZS
Part number
DH-IPC-HDBW3441RP-ZS-27135
EAN / UPC
6939554977558
Also known as
Dahua Technology WizSense DH-IPC-HDBW3441RP-ZS Dome IP security camera Indoor 2688 x 1520 pixels Ceiling

Specifications

87 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal104°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal124°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
Maximum aperture number1.5
Closest focusing distance0.8 m
Detect distance (tele)222 m
Detect distance (wide)64 m
Identify distance (tele)22.2 m
Identify distance (wide)6.4 m
Observe distance (tele)88.8 m
Observe distance (wide)25.6 m
Recognize distance (tele)44.4 m
Recognize distance (wide)12.8 m

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions1920 x 1080 (HD 1080), 704 x 576, 704 x 480, 1280 x 720 (HD 720), 1280 x 960, 352 x 288, 352 x 240, 2304 x 1296, 640 x 480 (VGA), 2688 x 1512
Video streamingYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity512 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (max)8.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height88.9 mm
Diameter12.2 cm
Weight492 g

Packaging data

Package weight663 g

Packaging content

Number of cameras1

Other features

Browser supportedIE: IE8, IE9, IE11 Chrome Firefox
