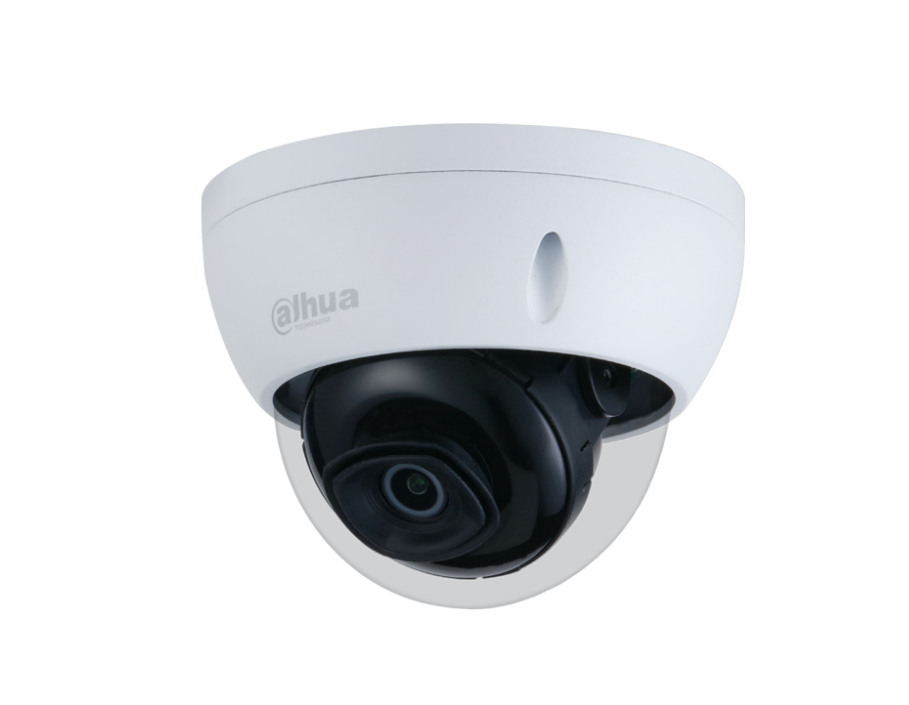

Dahua Technology AI Series DH-IPC-HDBW3441EN-AS Dome IP security camera
Dahua Technology

AI Series DH-IPC-HDBW3441EN-AS Dome IP security camera

2688 x 1520 pixels Ceiling

Model DH-IPC-HDBW3441EN-ASPart no. DH-IPC-HDBW3441EN-AS-2.8MM

84 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight378 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
378 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW3441EN-AS
Part number
DH-IPC-HDBW3441EN-AS-2.8MM
Also known as
Dahua Technology AI Series DH-IPC-HDBW3441EN-AS Dome IP security camera 2688 x 1520 pixels Ceiling

Specifications

84 specifications in 18 groups

Performance

TypeIP security camera
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Alarm input/outputYes
CertificationCE-LVD, CE-EMC, FCC, UL/CUL

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Angle of rotation355°
Lens viewing angle, horizontal103°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal122°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Fixed focusYes
Maximum aperture number1.6
Closest focusing distance0.9 m
Detect distance (wide)56 m
Fixed focal length2.8 mm
Identify distance (wide)5.6 m
Observe distance (wide)22.4 m
Recognize distance (wide)11.2 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
Frame rate30 fps
NTSC resolutions2668 x 1520 pixels
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, G.711 A-law, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP; Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Security

MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (max)7.3 W
DC output voltage12

Operational conditions

Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height81 mm
Diameter11 cm
Weight378 g

Packaging data

Package weight523 g

Packaging content

Number of cameras1
