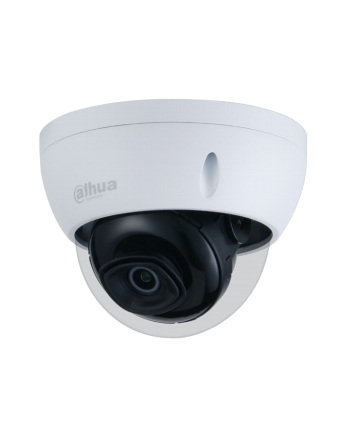

Dahua Technology Lite DH-IPC-HDBW3441E-AS Dome IP security camera Indoor & outdoor
Dahua Technology

Lite DH-IPC-HDBW3441E-AS Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model DH-IPC-HDBW3441E-ASPart no. IPC-HDBW3441EP-AS-0280BEAN 6939554977701

95 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight378 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
378 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW3441E-AS
Part number
IPC-HDBW3441EP-AS-0280B
EAN / UPC
6939554977701
Also known as
Dahua Technology Lite DH-IPC-HDBW3441E-AS Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

95 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Remote viewingYes
CertificationCE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Angle of rotation355°
Lens viewing angle, horizontal103°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal122°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Custom modes, Manual, Natural, Outdoor
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
Detect distance56 m
Observe distance22.4 m
Recognize distance11.2 m
Identify distance5.6 m
Maximum aperture number1.6
Closest focusing distance0.9 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
Frame rate30 fps
Analog signal format systemPAL
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio codecsG.711a, G.711Mu, G726, AAC

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Active tampering alarmYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Scene change, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)7.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height81 mm
Diameter11 cm
Weight378 g

Packaging data

Package weight523 g

Packaging content

Number of cameras1
