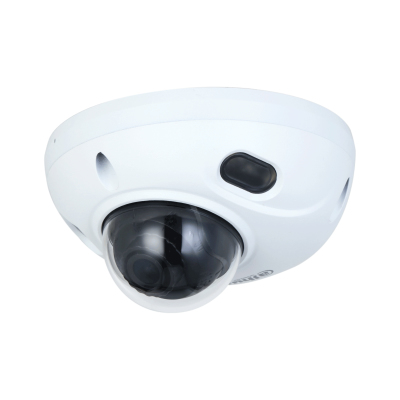

Dahua Technology WizSense DH-IPC-HDBW3241F-AS-S2 security camera Dome IP security camera Outdoor
Dahua Technology

WizSense DH-IPC-HDBW3241F-AS-S2 security camera Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-IPC-HDBW3241F-AS-S2EAN 6923172541017

111 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight423 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
423 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW3241F-AS-S2
Part number
DH-IPC-HDBW3241F-AS-S2
EAN / UPC
6923172541017
Also known as
Dahua Technology WizSense DH-IPC-HDBW3241F-AS-S2 security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

111 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal107°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal127°
Tilt angle range-20 - 70°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 s–1/100,000 s
Adjustment shutter speedAuto/Manual
Number of Privacy masking areas4
Viewing angle, horizontal (2.8mm lens)107°
Viewing angle, vertical (2.8mm lens)56°
Viewing angle, diagonal (2.8mm lens)127°
Viewing angle, horizontal (6mm lens)54°
Viewing angle, vertical (6mm lens)29°
Viewing angle, diagonal (6mm lens)63°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Detect distance43.9 m
Observe distance17.5 m
Recognize distance8.8 m
Focal length range2.8 mm
Identify distance4.4 m
Closest focusing distance0.7 m
Detect distance (2.8mm lens)43.9 m
Observe distance (2.8mm lens)17.5 m
Recognize distance (2.8mm lens)8.8 m
Identify distance (2.8mm lens)4.4 m
Detect distance (6mm lens)85.5 m
Observe distance (6mm lens)34.2 m
Recognize distance (6mm lens)17.1 m
Identify distance (6mm lens)8.6 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rateH.264,H.265
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes

Audio

Audio formats supportedG.711 A-law, G.723, G.726, PCM
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Bit rate range3 - 8192 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)
Client interoperabilityONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes

Security

Alarm input channels1
Alarm output channels1
Digest authenticationYes
HTTPS encryptionYes
Human and vehicle targets classificationYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Scene change, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)3.8 W
Power consumption (max)7.2 W
Power consumption (Power over Ethernet (PoE))4.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height64.8 mm
Diameter11.1 cm
Weight423 g

Packaging data

Package weight530 g

Packaging content

Number of cameras1

Other features

Browser supportedIE: IE11,Chrome, Firefox

Technical details

Number of video streams3
