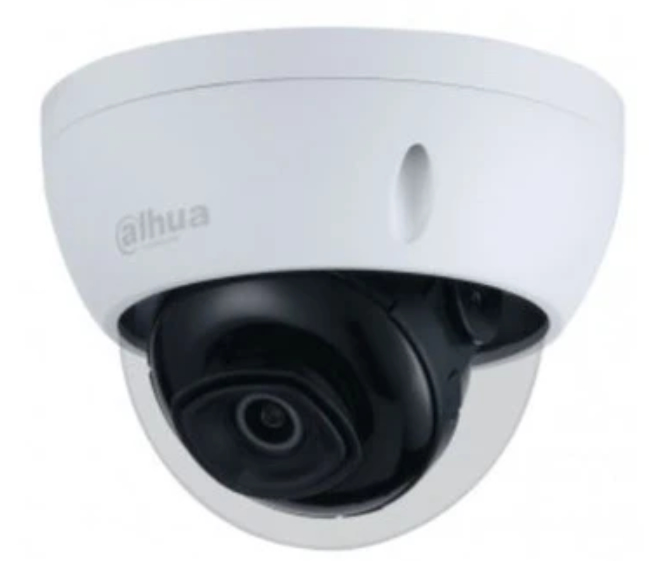

Dahua Technology Lite DH-IPC-HDBW2431EN-S-0280B-S2 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Lite DH-IPC-HDBW2431EN-S-0280B-S2 security camera Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model DH-IPC-HDBW2431EN-S-0280B-S2EAN 6939554977299

84 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight350 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
350 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW2431EN-S-0280B-S2
Part number
DH-IPC-HDBW2431EN-S-0280B-S2
EAN / UPC
6939554977299
Also known as
Dahua Technology Lite DH-IPC-HDBW2431EN-S-0280B-S2 security camera Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

84 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationEN60950-1 2014/30/EU FCC: 47 CFR FCC 15/B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresDust resistant, Vandal proof, Waterproof
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.008 lx
Angle of rotation355°
Lens viewing angle, horizontal102°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal121°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Custom modes, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Detect distance56 m
Observe distance22.4 m
Recognize distance11.2 m
Maximum aperture number1.6
Closest focusing distance0.9 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3, IEEE 802.3u
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Digital watermarkYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)5.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height81 mm
Diameter11 cm
Weight350 g

Sustainability

Compliance certificatesCE
Sustainability complianceYes

Packaging data

Package weight491 g

Packaging content

Number of cameras1
