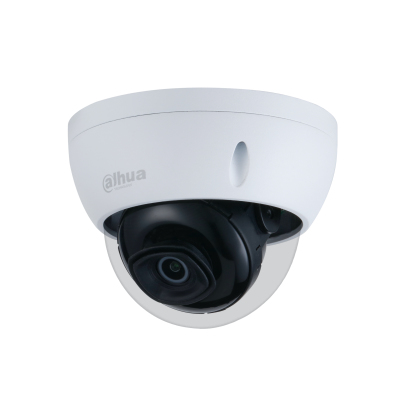

Dahua Technology Lite DH-IPC-HDBW2431E-S-S2 Dome IP security camera Outdoor
Dahua Technology

Lite DH-IPC-HDBW2431E-S-S2 Dome IP security camera Outdoor

2688 x 1520 pixels Ceiling/wall

Model DH-IPC-HDBW2431E-S-S2Part no. IPC-HDBW2431E-S-S2

84 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight350 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
350 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW2431E-S-S2
Part number
IPC-HDBW2431E-S-S2
Also known as
Dahua Technology Lite DH-IPC-HDBW2431E-S-S2 Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

84 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE-LVD: EN60950-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.01 lx
Angle of rotation355°
Lens viewing angle, horizontal102°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal121°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Custom modes, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Number of lenses1
Maximum aperture number1.6
Closest focusing distance0.9 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes720p, 1080p
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate32-6144 kbps, 12-6144 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy maskingYes
Region of Interest (ROI) encodingYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Flash memory128 MB
Internal memory128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)4.5 W
Power consumption (Power over Ethernet (PoE))5.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height81 mm
Diameter11 cm
Weight350 g

Packaging data

Package weight491 g

Packaging content

Number of cameras1
