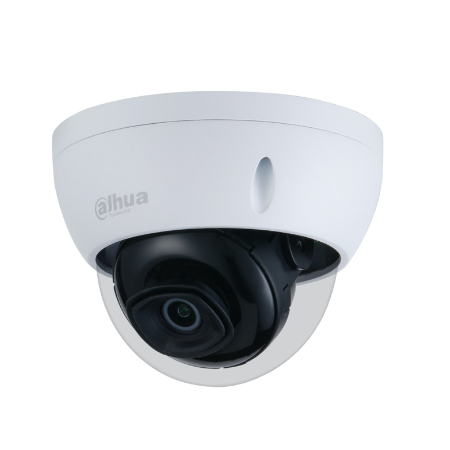

Dahua Technology Lite DH-IPC-HDBW2231E-S-S2 Dome IP security camera Indoor & outdoor
Dahua Technology

Lite DH-IPC-HDBW2231E-S-S2 Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-IPC-HDBW2231E-S-S2Part no. IPC-HDBW2231E-S-0360B-S2EAN 6939554979453

88 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight350 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
350 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-IPC-HDBW2231E-S-S2
Part number
IPC-HDBW2231E-S-0360B-S2
EAN / UPC
6939554979453
Also known as
Dahua Technology Lite DH-IPC-HDBW2231E-S-S2 Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

88 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Remote viewingYes
CertificationCE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.002 lx
Angle of rotation355°
Lens viewing angle, horizontal87°
Lens viewing angle, vertical46°
Lens viewing angle, diagonal104°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Custom modes, Manual, Natural, Outdoor
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Detect distance55.2 m
Observe distance22.1 m
Recognize distance11 m
Identify distance5.5 m
Maximum aperture number1.6
Closest focusing distance1.2 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6144 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Active tampering alarmYes
Digital watermarkYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
Video motion detectionYes

Power

Power source typeDC, PoE
Power consumption (max)4.5 W
Power consumption (Power over Ethernet (PoE))5.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height81 mm
Diameter11 cm
Weight350 g

Packaging data

Package weight480 g

Packaging content

Number of cameras1
