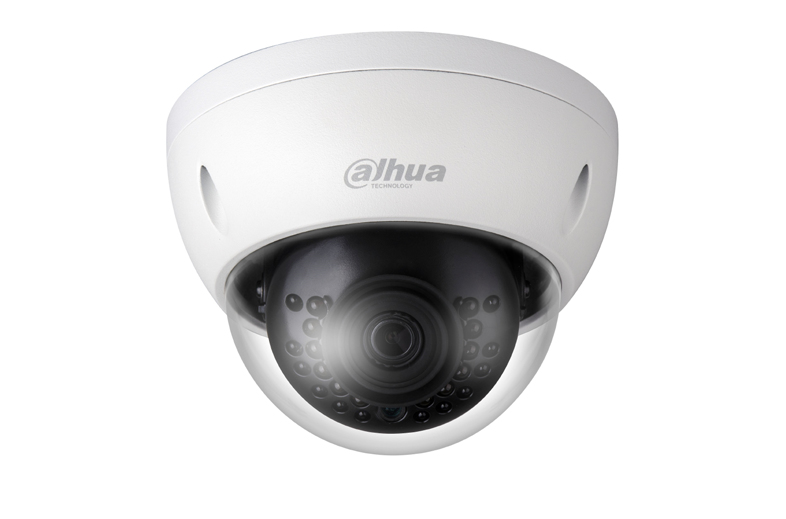

Dahua Technology Lite DH-IPC-HDBW1220EP-S-0360B Dome IP security camera Indoor & outdoor Ceiling

Dahua Technology Lite DH-IPC-HDBW1220EP-S-0360B Dome IP security camera Indoor & outdoor Ceiling

Model DH-IPC-HDBW1220EP-S-0360BPart no. 1.0.01.04.19136

94 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight340 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
340 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW1220EP-S-0360B
Part number
1.0.01.04.19136
Also known as
Dahua Technology Lite DH-IPC-HDBW1220EP-S-0360B Dome IP security camera Indoor & outdoor Ceiling

Specifications

94 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal83°
Lens viewing angle, vertical44°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3(4)~1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Zoom capabilityYes
Digital zoom16x
Detect distance57 m
Observe distance23 m
Recognize distance11 m
Fixed focusYes
Identify distance6 m
Fixed focal length3.6 mm
Focus adjustment2.0

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs24

Video

Total megapixels2 MP
Video compression formatsH.264, H.264+
Frame rate30 fps
Video streamingYes
Noise reductionYes
3D NR (Noise Reduction)Yes
Gain control typeAuto/Manual
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Bit rateH264:24K ~ 8192Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast
Client interoperabilityONVIF, PSIA, CGI

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory256 MB
ROM capacity16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
InterfaceRJ-45

Security

MirrorYes
Video motion detectionYes

Management features

Management softwareSmart PSS, DSS,Easy4ip

Power

Power source typePoE
Power consumption (typical)3.7 W
DC output voltage12
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height81 mm
Diameter11 cm
Weight340 g

Packaging data

Package weight470 g

Packaging content

Number of cameras1

Other features

Browser supportedIE, Chrome, Firefox, Safari
IR controlAuto, Manual

Technical details

Video resolutions352 x 288,704 x 480,704 x 576,1280 x 720,1280 x 960,1920 x 1080
Number of video streams2
