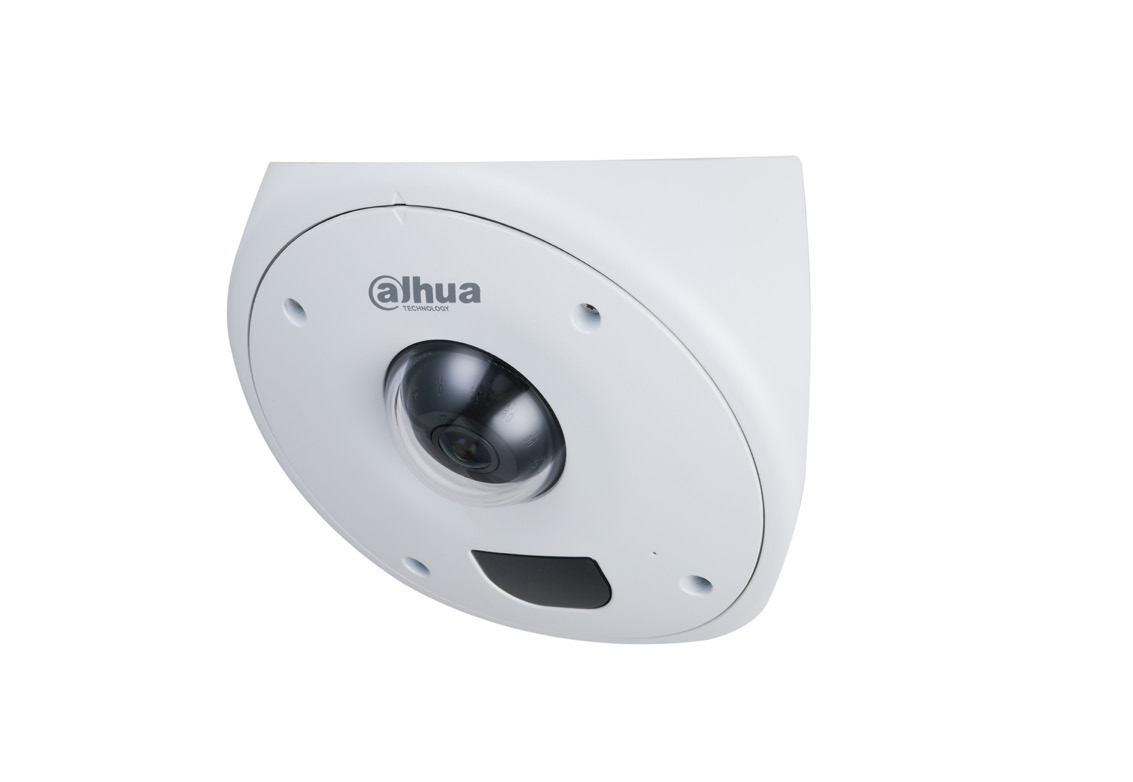

Dahua Technology DH-IPC-HCBW8442 IP security camera Outdoor
Dahua Technology

DH-IPC-HCBW8442 IP security camera Outdoor

2688 x 1520 pixels Ceiling/wall

Model DH-IPC-HCBW8442Part no. IPC-HCBW8442

92 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.36 kg
  • ColourWhite
  • Mounting typeCeiling/wall
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
1.36 kg
Colour
White
Mounting type
Ceiling/wall
Brand
Dahua Technology
Model
DH-IPC-HCBW8442
Part number
IPC-HCBW8442
Also known as
Dahua Technology DH-IPC-HCBW8442 IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

92 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE-LVD: EN60950-1 CE-EMC: 2014/30/EU CE-RED: 2014/53/EU FCC: 47 CFR FCC 15, B FCC ID: FCC 15C

Design

Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.004 lx
Angle of rotation355°
Lens viewing angle, horizontal135°
Lens viewing angle, vertical90°
Camera shutter typeElectronic
Camera shutter speed1/3 –1/100000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Detect distance34.5 m
Observe distance13.8 m
Recognize distance6.9 m
Identify distance3.4 m
Maximum aperture number2
Closest focusing distance0.4 m
Fixed focal length2.5 mm

Night vision

Night visionYes
Night vision distance10 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate32 Kbps–8192 Kbps, 19 Kbps–7424 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, People counting, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)9.5 W
Power consumption (Power over Ethernet (PoE))11.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width209.4 mm
Depth212 mm
Height103.1 mm
Weight1.36 kg

Packaging data

Package weight1.47 kg

Packaging content

Number of cameras1
