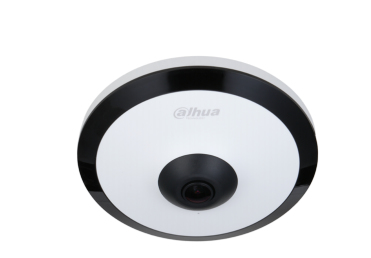

WizMind DH-IPC-EW5541-AS security camera Dome IP security camera Indoor & outdoor
2592 x 1944 pixels Ceiling/wall
Model DH-IPC-EW5541-ASEAN 6939554993879
41 specifications
- Memory512 MB
- ConnectivityWired
- TypeIP security camera
- Weight299 g
- ColourWhite
- Form factorDome
Overview
- Memory
- 512 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 299 g
- Colour
- White
- Form factor
- Dome
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-IPC-EW5541-AS
- Part numbers
- DH-IPC-EW5541-AS, DH-IPC-EW5541N-AS
- EAN / UPC
- 6939554993879
- Also known as
- Dahua Technology WizMind DH-IPC-EW5541-AS security camera Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
Specifications
41 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.006 lx |
| Field of view (FOV) angle | 180° |
| Camera shutter speed | 1/100,000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.2 m |
| Fixed focal length | 1.4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 3 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 56 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Internal memory | 512 MB |
| ROM capacity | 128 MB |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 44.6 mm |
| Diameter | 12.6 cm |
| Weight | 299 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 441 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
