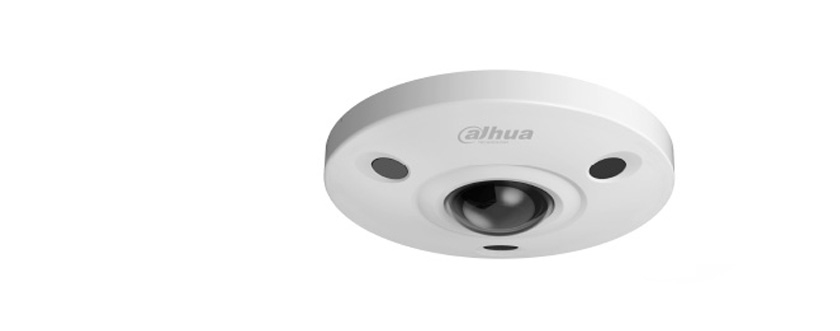

Dahua Technology DH-IPC-EBW86A0N-I security camera Dome IP security camera Indoor & outdoor

Dahua Technology DH-IPC-EBW86A0N-I security camera Dome IP security camera Indoor & outdoor

3072 x 2048 pixels Ceiling/wall

Model DH-IPC-EBW86A0N-I

65 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight580 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
580 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-EBW86A0N-I
Part number
DH-IPC-EBW86A0N-I
Also known as
Dahua Technology DH-IPC-EBW86A0N-I security camera Dome IP security camera Indoor & outdoor 3072 x 2048 pixels Ceiling/wall

Specifications

65 specifications in 16 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationFCC (SEFD1412194-A ) UL (E234884-A51-UL)

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresVandal proof
International Protection (IP) codeIP67

Camera

Minimum illumination0.01 lx
Lens viewing angle, horizontal185°
Lens viewing angle, vertical185°
Lens viewing angle, diagonal185°
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/3(4) ~ 1/100.000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom16x
Maximum aperture number2
Fixed focal length1.55 mm

Night vision

Night visionYes
Night vision distance10 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution3072 x 2048 pixels
Total megapixels6 MP
Video compression formatsH.264, M-JPEG
Supported graphics resolutions1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 3072 x 2048
Supported video modes1080p
Frame rate30 fps
Noise reductionYes
Automatic gain controlYes
Privacy maskingYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Maximum memory card size64 GB
Internal memory1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
InterfaceRJ-45

Security

Video motion detectionYes

Power

Power source typePoE
Power consumption (max)11 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Depth50.7 mm
Diameter15 cm
Weight580 g

Packaging content

Number of cameras1
