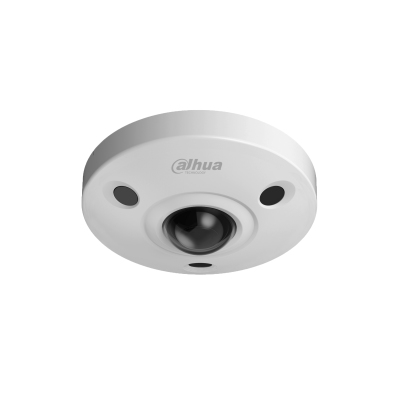

Panoramic DH-IPC-EBW81230P security camera Bulb IP security camera Outdoor Ceiling
Model DH-IPC-EBW81230PEAN 6939554934773
69 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight580 g
- ColourWhite
- Form factorBulb
- Camera pan controlYes
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 580 g
- Colour
- White
- Form factor
- Bulb
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-IPC-EBW81230P
- Part number
- DH-IPC-EBW81230P
- EAN / UPC
- 6939554934773
- Also known as
- Dahua Technology Panoramic DH-IPC-EBW81230P security camera Bulb IP security camera Outdoor Ceiling
Specifications
69 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wireless |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Remote viewing | Yes |
| Certification | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
Design
| Specification | Value |
|---|---|
| Form factor | Bulb |
| Mounting type | Ceiling |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Metal |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.001 lx |
| Field of view (FOV) angle | 180° |
| White balance | Auto, Manual, Natural, Outdoor, Street lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 2 |
| Optical sensor size | 25.4 / 7 mm (1 / 7") |
| Sensor type (thermal module) | Noise equivalent temperature difference (NETD) |
| Progressive scan | Yes |
Panoramic camera
| Specification | Value |
|---|---|
| Sensor type (panoramic camera) | CMOS |
| Camera shutter speed (panoramic camera) | 1/100000 s |
| Minimum illumination (panoramic camera) | 0.001 lx |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 50 dB |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
| Fixed focal length (panoramic camera) | 1.98 mm |
| Maximum aperture number (panoramic camera) | 2.8 |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Digital zoom | 16x |
| Detect distance | 42 m |
| Observe distance | 17 m |
| Recognize distance | 8 m |
| Fixed focus | Yes |
| Identify distance | 4 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Total megapixels | 12 MP |
| Video formats supported | H.264, H.265 |
| Supported graphics resolutions | 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 960, 2048 x 1536 (QXGA), 2880 x 2880, 2880 x 2160, 4000 x 3000 |
| Video recording | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.711, G.711 μ-law, G.726 |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 149.8 mm |
| Depth | 47.7 mm |
| Weight | 580 g |
