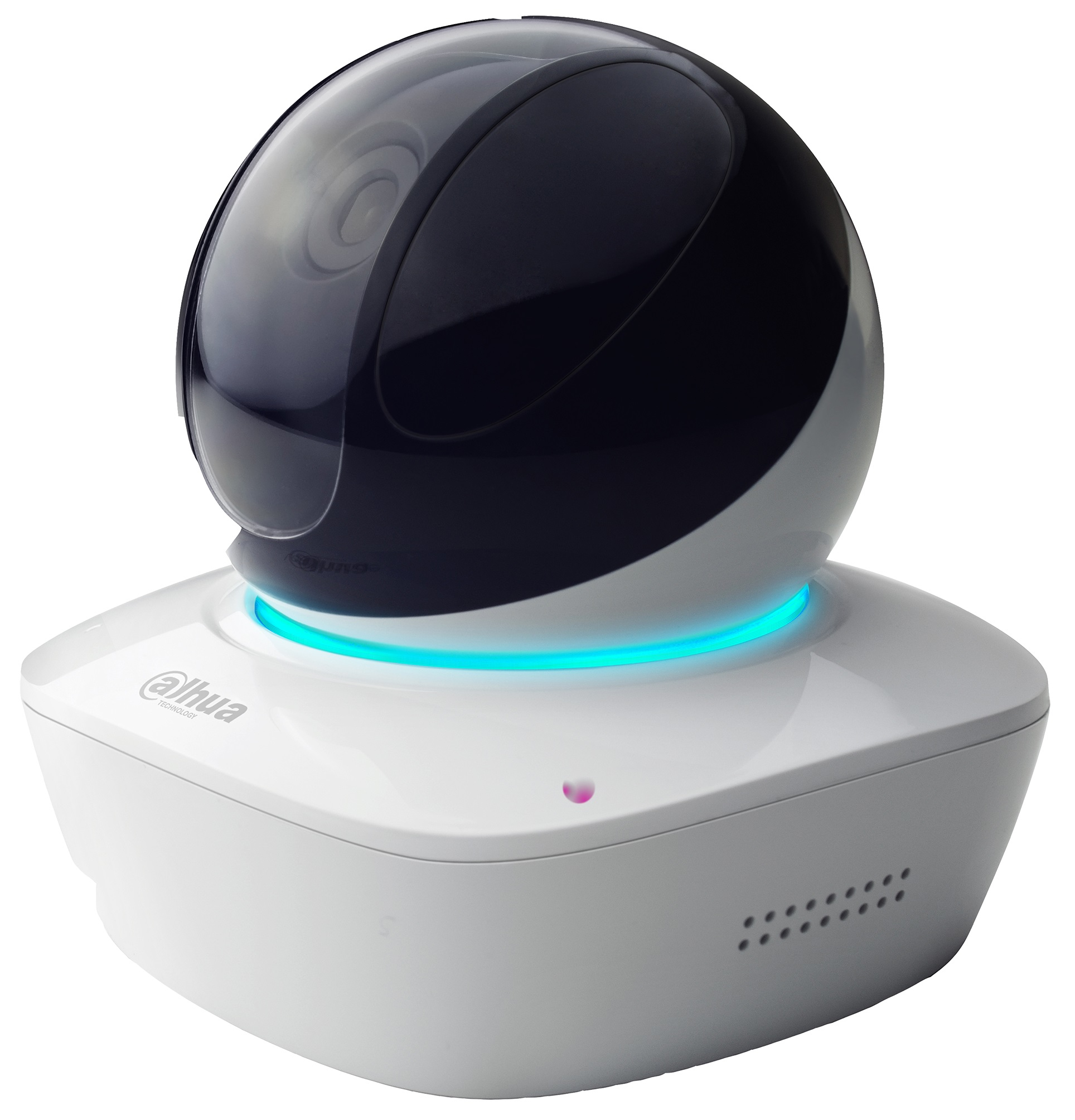

Dahua Technology DH-IPC-A15 security camera Indoor

1280 x 960 pixels Desk

Model DH-IPC-A15

69 specifications

ConnectivityWired
Weight215 g
ColourBlack, White
Placement supportedIndoor
Mounting typeDesk
Minimum illumination0.45 lx

See all specifications

Overview

Connectivity: Wired
Weight: 215 g
Colour: Black, White
Placement supported: Indoor
Mounting type: Desk
Minimum illumination: 0.45 lx

Brand: Dahua Technology
Category: Security Camera
Model: DH-IPC-A15
Part number: DH-IPC-A15
Also known as: Dahua Technology DH-IPC-A15 security camera Indoor 1280 x 960 pixels Desk

Specifications

69 specifications in 18 groups

Performance

Specification	Value
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
Day/night mode	Yes
Certification	CE, UL, FCC

Design

Specification	Value
Mounting type	Desk
Product colour	Black, White
LED indicators	Yes
Housing material	Plastic

Camera

Specification	Value
Minimum illumination	0.45 lx
Angle of rotation	355°
Lens viewing angle, horizontal	72.2°
Lens viewing angle, vertical	52.9°
Tilt angle range	0 - 90°
Pan range	0 - 355°
White balance	Auto, Manual, Outdoor

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Effective sensor resolution	1.3 pixels
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Digital zoom	16x
Maximum aperture number	2
Fixed focal length	3.6 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	10 m
LED type	IR
Number of illumination LEDs	2

Video

Specification	Value
Maximum resolution	1280 x 960 pixels
Total megapixels	1.3 MP
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960
Supported video modes	720p, 960p
Frame rate	30 fps
Noise reduction	Yes
Automatic gain control	Yes
Flip & mirror	Yes
Privacy masking	Yes

Audio

Specification	Value
Built-in speaker(s)	Yes
Audio formats supported	AAC, G.711
Signal-to-Noise Ratio (SNR)	50 dB
Built-in microphone	Yes
Voice codecs	G.711Mu, G.711a

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Number of users	20 user(s)

Storage

Specification	Value
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1

Security

Specification	Value
Motion sensor	Yes

Power

Specification	Value
Power consumption (typical)	8.2 W
DC output voltage	5
DC output current	2 A

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 45 °C
Storage temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

System requirements

Specification	Value
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Width	94.4 mm
Depth	94.4 mm
Height	94.4 mm
Weight	215 g

Packaging data

Specification	Value
Package weight	575 g

Packaging content

Specification	Value
Number of cameras	1
