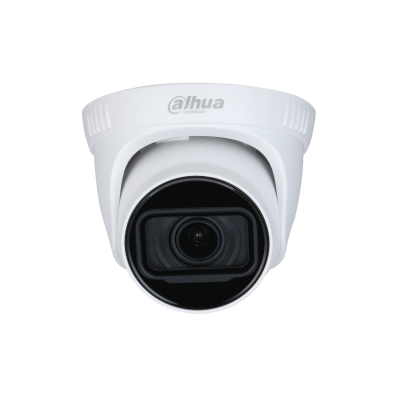

Cooper DH-HAC-T3A21-Z Spherical CCTV security camera Outdoor
1920 x 1080 pixels Ceiling/Wall/Pole
Model DH-HAC-T3A21-ZPart no. HAC-T3A21-Z-2712
62 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight380 g
- ColourWhite
- Form factorSpherical
- Field of view (FOV) angle125°
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 380 g
- Colour
- White
- Form factor
- Spherical
- Field of view (FOV) angle
- 125°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-T3A21-Z
- Part number
- HAC-T3A21-Z-2712
- Also known as
- Dahua Technology Cooper DH-HAC-T3A21-Z Spherical CCTV security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole
Specifications
62 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 131 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Luminous flux | 0.04 lm |
| Certification | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Field of view (FOV) angle | 125° |
| Lens viewing angle, horizontal | 102° |
| Lens viewing angle, vertical | 53° |
| Lens viewing angle, diagonal | 125° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/25 – 1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Detect distance | 131 m |
| Observe distance | 52.4 m |
| Recognize distance | 26.2 m |
| Lens diameter (wide) | 2.7 mm |
| Focal length range | 2.7 - 12 mm |
| Focus | Motorized |
| Identify distance | 13.1 m |
| Maximum aperture number | 1.7 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| NTSC resolutions | 1920 x 1080 pixels |
| PAL resolutions | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto/Manual |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 6.6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 122 mm |
| Depth | 106.2 mm |
| Weight | 380 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 510 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
