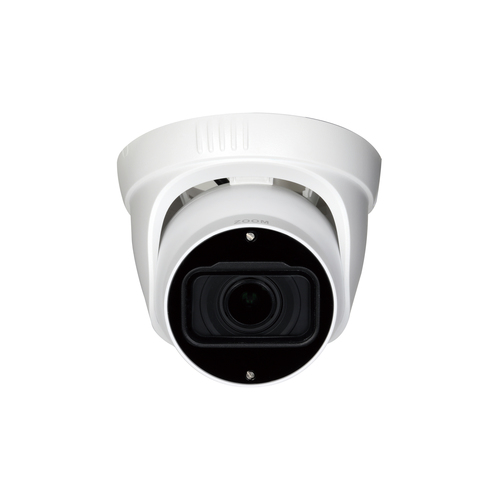

Cooper DH-HAC-T3A21-VF security camera Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model DH-HAC-T3A21-VFEAN 6939554956966
64 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight390 g
- ColourBlack, White
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 390 g
- Colour
- Black, White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-T3A21-VF
- Part number
- DH-HAC-T3A21-VF
- EAN / UPC
- 6939554956966
- Also known as
- Dahua Technology Cooper DH-HAC-T3A21-VF security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
64 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Aluminium, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.04 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 106° |
| Lens viewing angle, vertical | 56° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/25 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.7 - 12 mm |
| Focus | Manual |
| Maximum aperture number | 1.8 |
| Closest focusing distance | 0.5 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4.6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 106 mm |
| Diameter | 12.2 cm |
| Weight | 390 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 510 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
