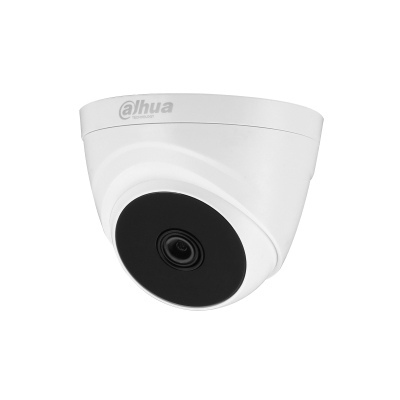

Cooper DH-HAC-T1A51N-0280B-S2 security camera Dome CCTV security camera
2880 x 1620 pixels Ceiling
Model DH-HAC-T1A51N-0280B-S2EAN 6939554993466
52 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight90 g
- ColourWhite
- Form factorDome
- Angle of rotation360°
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 90 g
- Colour
- White
- Form factor
- Dome
- Angle of rotation
- 360°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-T1A51N-0280B-S2
- Part number
- DH-HAC-T1A51N-0280B-S2
- EAN / UPC
- 6939554993466
- Also known as
- Dahua Technology Cooper DH-HAC-T1A51N-0280B-S2 security camera Dome CCTV security camera 2880 x 1620 pixels Ceiling
Specifications
52 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4,EN60950-1, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Plastic |
Camera
| Specification | Value |
|---|---|
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 106° |
| Lens viewing angle, vertical | 56° |
| Lens viewing angle, diagonal | 125° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Detect distance | 56 m |
| Observe distance | 22.4 m |
| Recognize distance | 11.2 m |
| Identify distance | 5.6 m |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620 |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 2.7 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 68.8 mm |
| Diameter | 8.54 cm |
| Weight | 90 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 140 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
