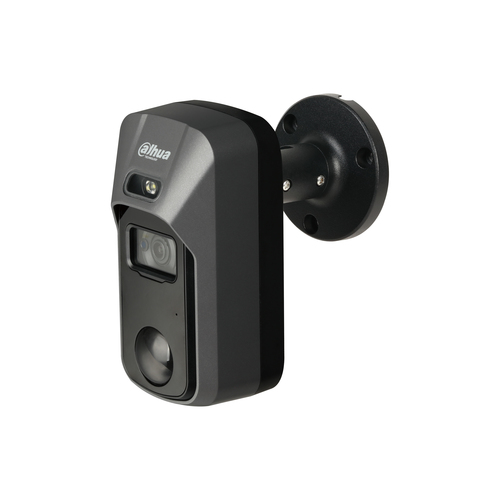

DH-HAC-ME2241C-W Cube CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model DH-HAC-ME2241C-WPart no. HAC-ME2241C-W
69 specifications
- ConnectivityWireless
- TypeCCTV security camera
- Weight410 g
- ColourBlack
- Form factorCube
- Camera pan controlYes
Overview
- Connectivity
- Wireless
- Type
- CCTV security camera
- Weight
- 410 g
- Colour
- Black
- Form factor
- Cube
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-ME2241C-W
- Part number
- HAC-ME2241C-W
- Also known as
- Dahua Technology DH-HAC-ME2241C-W Cube CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
69 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wireless |
| Maximum operating distance | 100 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC 15 B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Mounting type | Ceiling/wall |
| Product colour | Black |
| Housing material | Aluminium, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 110° |
| Lens viewing angle, vertical | 60° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/4 - 1/100000, 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 39 m |
| Observe distance | 15 m |
| Recognize distance | 8 m |
| Identify distance | 4 m |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Built-in microphone | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Security
| Specification | Value |
|---|---|
| Detection distance | 15 m |
| Motion sensor | Yes |
| Motion sensor technology | Passive infrared (PIR) sensor |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 144.7 mm |
| Depth | 76.7 mm |
| Height | 146.4 mm |
| Weight | 410 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 550 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
