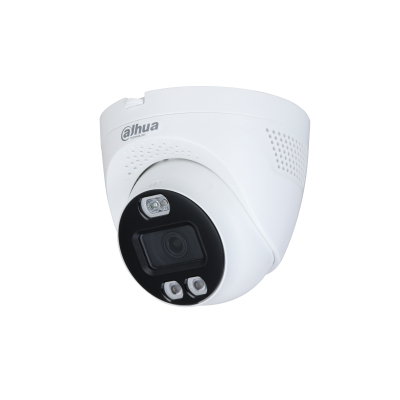

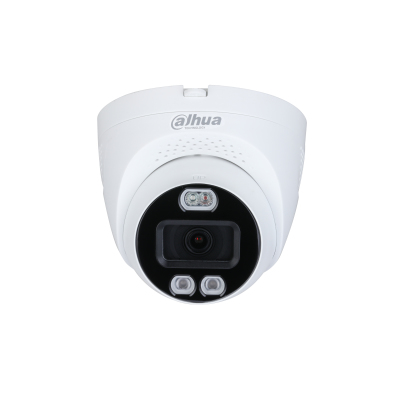

HDCVI PTZ DH-HAC-ME1509TQ-PV security camera CCTV security camera Indoor & outdoor
2592 x 1944 pixels Ceiling
Model DH-HAC-ME1509TQ-PV
46 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight320 g
- ColourWhite
- Mounting typeCeiling
- Minimum illumination0.005 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 320 g
- Colour
- White
- Mounting type
- Ceiling
- Minimum illumination
- 0.005 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-ME1509TQ-PV
- Part number
- DH-HAC-ME1509TQ-PV
- Also known as
- Dahua Technology HDCVI PTZ DH-HAC-ME1509TQ-PV security camera CCTV security camera Indoor & outdoor 2592 x 1944 pixels Ceiling
Specifications
46 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Alarm input/output | Yes |
Design
| Specification | Value |
|---|---|
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Frame rate | 20 fps |
| Noise reduction | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 7.7 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 100.9 mm |
| Diameter | 11 cm |
| Weight | 320 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
