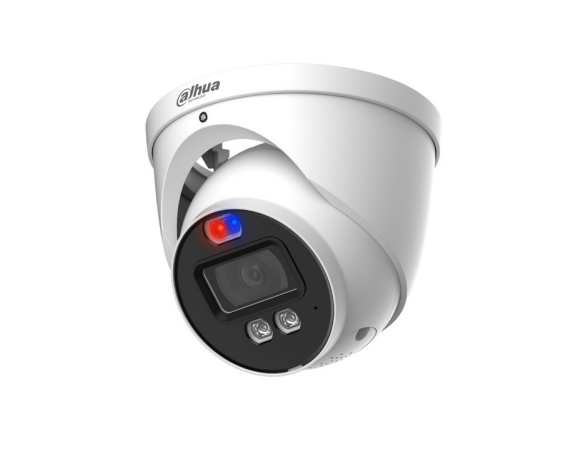

DH-HAC-ME1239HN-A-PV security camera Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model DH-HAC-ME1239HN-A-PV
61 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight690 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 690 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-ME1239HN-A-PV
- Part number
- DH-HAC-ME1239HN-A-PV
- Also known as
- Dahua Technology DH-HAC-ME1239HN-A-PV security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
61 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Built-in light | Yes |
| Dynamic range | 130 dB |
| Certification | CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3- 3: 2013, EN55024: 2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1:2014, EN62368-1:2014+A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.0001 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 42.2 m |
| Observe distance | 16.9 m |
| Recognize distance | 8.4 m |
| Focal length range | 2.8 - 3.6 mm |
| Identify distance | 4.2 m |
| Maximum aperture number | 1 |
| Closest focusing distance | 1 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 960p, 1080p |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 4.2 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 122 mm |
| Weight | 690 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 165 mm |
| Package height | 138 mm |
| Package weight | 950 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
