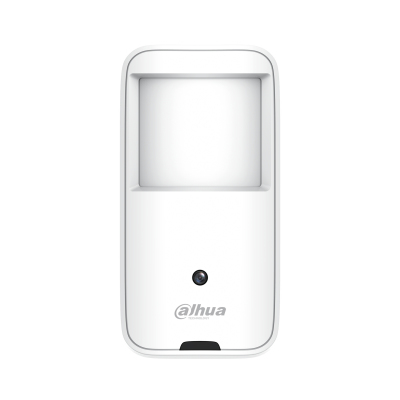

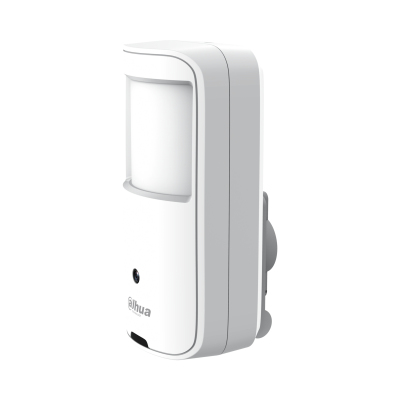

DH-HAC -HUM3200AN security camera Box CCTV security camera Indoor
1920 x 1080 pixels Ceiling/wall
Model DH-HAC-HUM3200AN
47 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight120 g
- ColourWhite
- Form factorBox
- Lens viewing angle, horizontal105°
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 120 g
- Colour
- White
- Form factor
- Box
- Lens viewing angle, horizontal
- 105°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HUM3200AN
- Part number
- DH-HAC-HUM3200AN
- Also known as
- Dahua Technology DH-HAC -HUM3200AN security camera Box CCTV security camera Indoor 1920 x 1080 pixels Ceiling/wall
Specifications
47 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Mounting type | Ceiling/wall |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 105° |
| Lens viewing angle, vertical | 58° |
| Lens viewing angle, diagonal | 118° |
| White balance | Area white balance, Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/25 - 1/30 s |
| Number of Privacy masking areas | 8 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 42.1 m |
| Observe distance | 16.8 m |
| Recognize distance | 8.4 m |
| Fixed focus | Yes |
| Identify distance | 4.2 m |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Security
| Specification | Value |
|---|---|
| Privacy protection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61.7 mm |
| Depth | 58.1 mm |
| Height | 119.7 mm |
| Weight | 120 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 190 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
