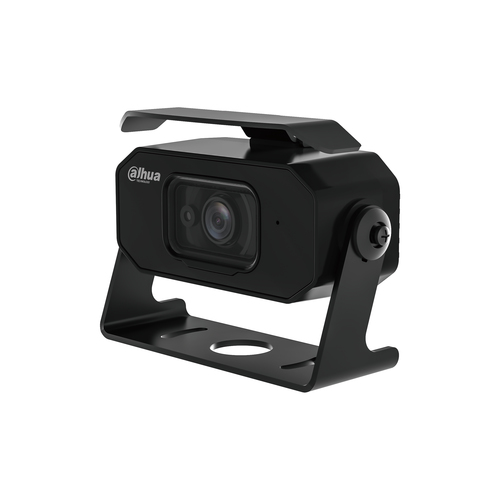

DH-HAC -HMW3200N-0210B security camera Cube IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/Pole
Model DH-HAC-HMW3200N-0210B
47 specifications
- ConnectivityWired
- TypeIP security camera
- Weight310 g
- ColourBlack
- Form factorCube
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 310 g
- Colour
- Black
- Form factor
- Cube
- Minimum illumination
- 0 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HMW3200N-0210B
- Part number
- DH-HAC-HMW3200N-0210B
- Also known as
- Dahua Technology DH-HAC -HMW3200N-0210B security camera Cube IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Pole
Specifications
47 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Mounting type | Ceiling/Pole |
| Product colour | Black |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 128° |
| Lens viewing angle, vertical | 75° |
| Tilt angle range | 0 - 180° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.1 mm |
| Maximum aperture number | 2.2 |
| Closest focusing distance | 0.2 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Frame rate | 30 fps |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 2.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 107.3 mm |
| Depth | 54.5 mm |
| Height | 74.9 mm |
| Weight | 310 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 420 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
