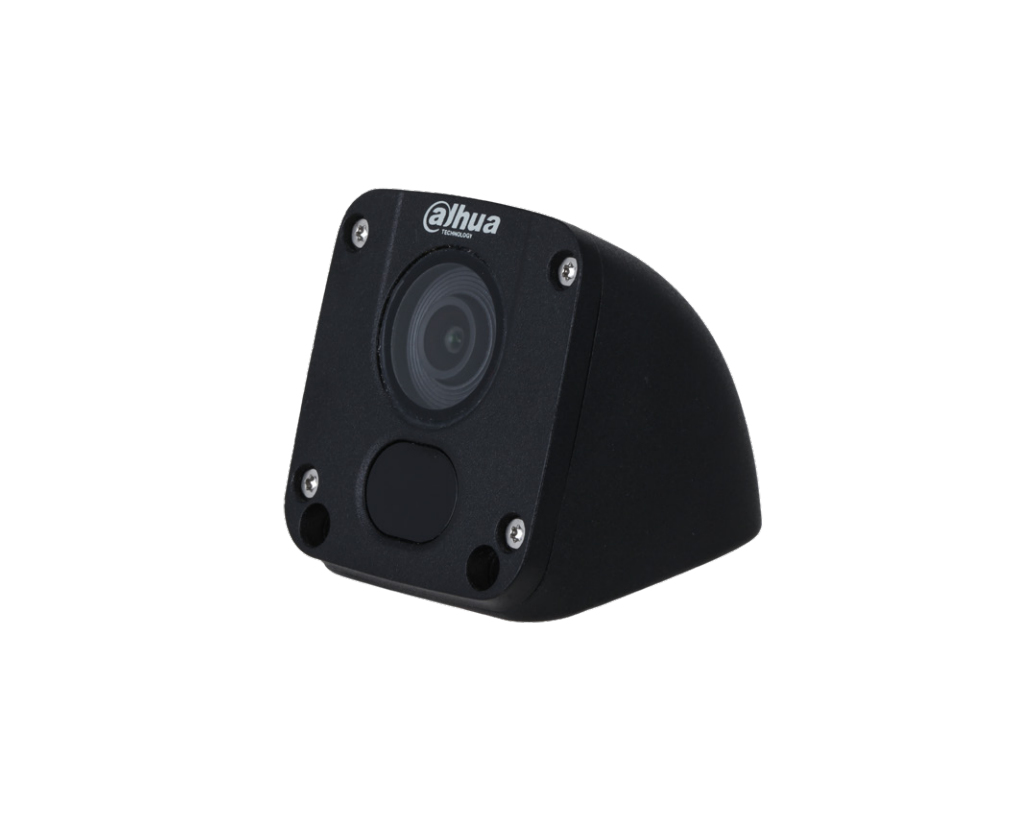

Mobile Camera DH-HAC-HMW3200D-H/V security camera Cube IP security camera Indoor
1920 x 1080 pixels
Model DH-HAC-HMW3200D-H/V
61 specifications
- ConnectivityWired
- TypeIP security camera
- Weight260 g
- ColourBlack
- Form factorCube
- Lens viewing angle, horizontal106°
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 260 g
- Colour
- Black
- Form factor
- Cube
- Lens viewing angle, horizontal
- 106°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HMW3200D-H/V
- Part number
- DH-HAC-HMW3200D-H/V
- Also known as
- Dahua Technology Mobile Camera DH-HAC-HMW3200D-H/V security camera Cube IP security camera Indoor 1920 x 1080 pixels
Specifications
61 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE/FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Cube |
| Product colour | Black |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 106° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, diagonal | 126° |
| Tilt angle range | 0 - 180° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/25 - 1/100000, 1/30 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.8 mm |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.5 m |
| Detect distance (wide) | 38.6 m |
| Identify distance (wide) | 3.9 m |
| Observe distance (wide) | 15.4 m |
| Recognize distance (wide) | 7.7 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported video modes | 720p, 960p, 1080p |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 3.1 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80.5 mm |
| Depth | 64.9 mm |
| Height | 59.9 mm |
| Weight | 260 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 350 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
