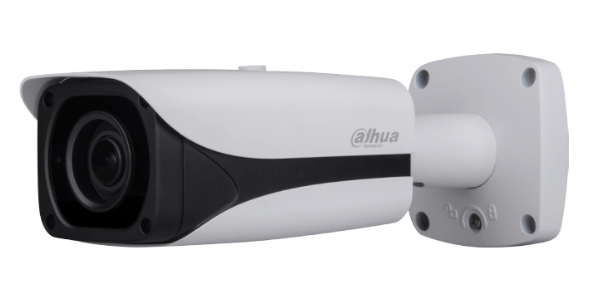

Ultra DH-HAC-HFW3231E-ZT security camera Bullet CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model DH-HAC-HFW3231E-ZT
68 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight1.16 kg
- ColourWhite
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 1.16 kg
- Colour
- White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HFW3231E-ZT
- Part number
- DH-HAC-HFW3231E-ZT
- Also known as
- Dahua Technology Ultra DH-HAC-HFW3231E-ZT security camera Bullet CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
68 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Languages support | Multi |
| Certification | CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | PAL: 1.3-1/30000, NTSC: 1-1/30000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1945 x 1097 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.7 - 12 mm |
| Auto focus | Yes |
| Focus | Motorized |
| Maximum aperture number | 1.4 |
| Closest focusing distance | 0.3 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 100 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2.1 MP |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| AC input voltage | 24 V |
| Power consumption (max) | 16.6 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 273.2 mm |
| Depth | 95 mm |
| Height | 95 mm |
| Weight | 1.16 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.52 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
