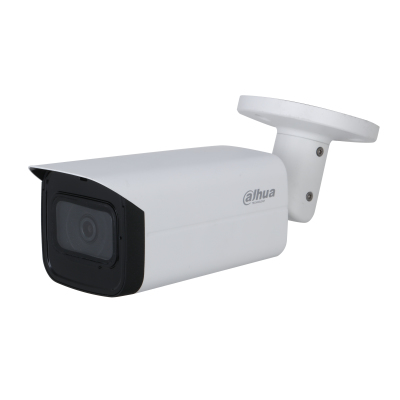

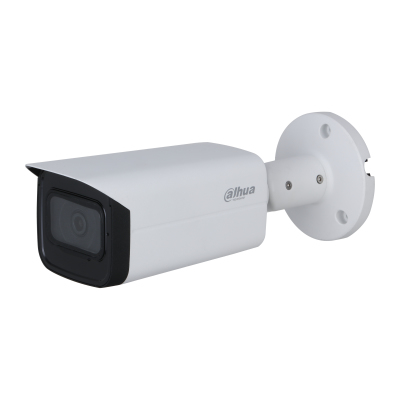

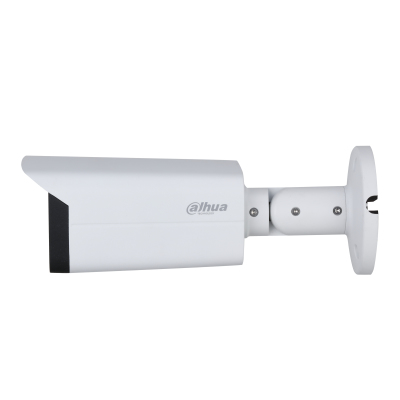

Dahua Technology Pro DH-HAC-HFW2501TU-A Bullet CCTV security camera Outdoor
Dahua Technology

Pro DH-HAC-HFW2501TU-A Bullet CCTV security camera Outdoor

2880 x 1620 pixels Ceiling/Wall/Pole

Model DH-HAC-HFW2501TU-APart no. HAC-HFW2501TU-A-0360B-S2EAN 6939554945038

67 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight770 g
  • ColourWhite
  • Form factorBullet
  • Minimum illumination0.001 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
770 g
Colour
White
Form factor
Bullet
Minimum illumination
0.001 lx
Brand
Dahua Technology
Model
DH-HAC-HFW2501TU-A
Part number
HAC-HFW2501TU-A-0360B-S2
EAN / UPC
6939554945038
Also known as
Dahua Technology Pro DH-HAC-HFW2501TU-A Bullet CCTV security camera Outdoor 2880 x 1620 pixels Ceiling/Wall/Pole

Specifications

67 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368- 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.001 lx
Angle of rotation360°
Lens viewing angle, horizontal92°
Lens viewing angle, vertical48°
Lens viewing angle, diagonal109°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter speedPAL: 1/3 - 1/100000; NTSC: 1/4 - 1/100000

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Detect distance80 m
Observe distance32 m
Recognize distance16 m
Fixed focusYes
Identify distance8 m
Maximum aperture number1.6
Closest focusing distance1.6 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance80 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Supported graphics resolutions960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)9.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width244.1 mm
Depth90.4 mm
Height90.4 mm
Weight770 g

Packaging data

Package weight1.04 kg

Packaging content

Number of cameras1
