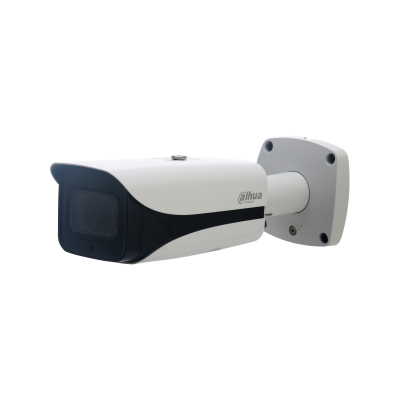

Pro DH-HAC-HFW2501E-A-3.6MM security camera Bullet IP security camera Indoor & outdoor
2592 x 1944 pixels Wall
Model DH-HAC-HFW2501E-A-3.6MM
45 specifications
- ConnectivityWired
- TypeIP security camera
- Weight420 g
- ColourWhite
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 420 g
- Colour
- White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HFW2501E-A-3.6MM
- Part number
- DH-HAC-HFW2501E-A-3.6MM
- Also known as
- Dahua Technology Pro DH-HAC-HFW2501E-A-3.6MM security camera Bullet IP security camera Indoor & outdoor 2592 x 1944 pixels Wall
Specifications
45 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 72 m |
| Observe distance | 29 m |
| Recognize distance | 14 m |
| Lens diameter | 3.6 mm |
| Identify distance | 7 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 7 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 179.9 mm |
| Height | 70 mm |
| Weight | 420 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 530 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
