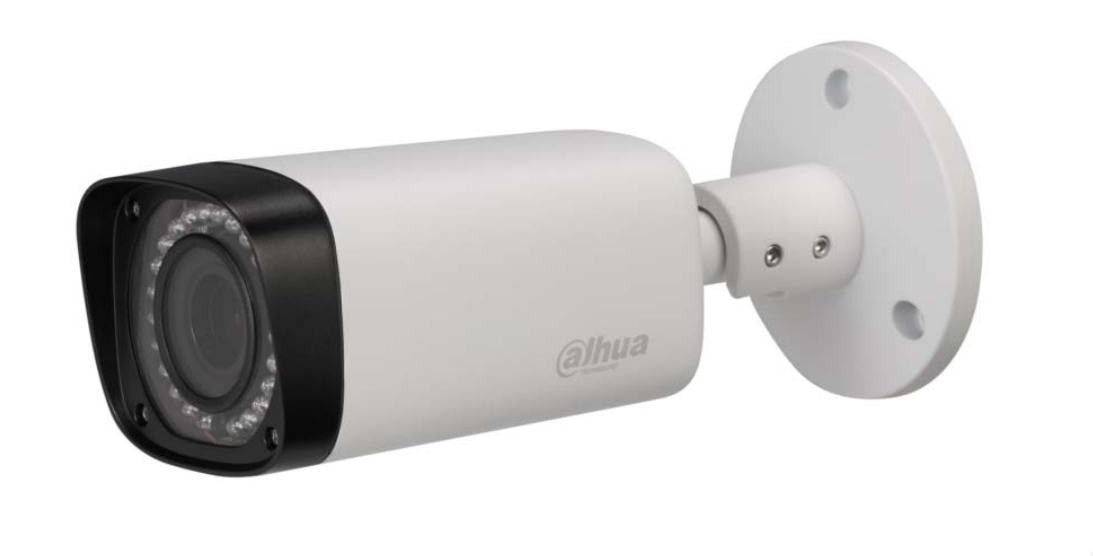

Lite DH-HAC-HFW2120R-Z security camera Bullet IP security camera Indoor & outdoor
1305 x 1049 pixels Ceiling/wall
Model DH-HAC-HFW2120R-Z
55 specifications
- ConnectivityWired
- TypeIP security camera
- Weight550 g
- ColourWhite
- Form factorBullet
- Minimum illumination0.01 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 550 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.01 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HFW2120R-Z
- Part number
- DH-HAC-HFW2120R-Z
- Also known as
- Dahua Technology Lite DH-HAC-HFW2120R-Z security camera Bullet IP security camera Indoor & outdoor 1305 x 1049 pixels Ceiling/wall
Specifications
55 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.01 lx |
| Lens viewing angle, horizontal | 87.6° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Number of effective pixels (H x V) | 1305 x 1049 pixels |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 2.7 - 12 mm |
| Focus | Motorized |
| Maximum aperture number | 1.2 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1305 x 1049 pixels |
| Total megapixels | 1.4 MP |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Supported video modes | 720p |
| Frame rate | 50 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction, Ultra 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 7.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 213 mm |
| Depth | 80 mm |
| Height | 72 mm |
| Weight | 550 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | BNC |
| Manual | Yes |
