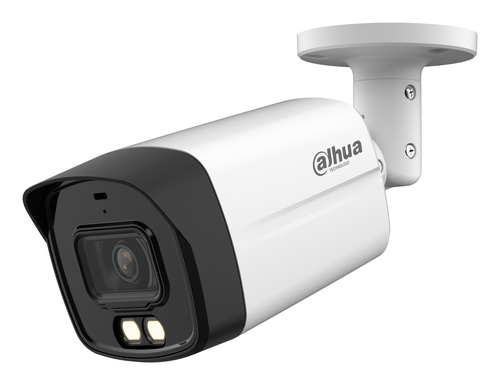

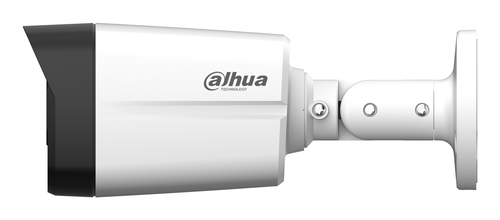

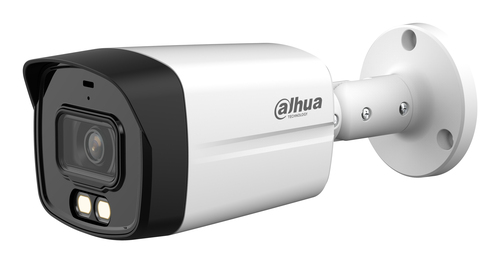

Dahua Technology Lite DH-HAC-HFW1809TLM-A-LED security camera Bullet CCTV security camera Indoor & outdoor
Dahua Technology

Lite DH-HAC-HFW1809TLM-A-LED security camera Bullet CCTV security camera Indoor & outdoor

3840 x 2160 pixels Ceiling/Wall/Pole

Model DH-HAC-HFW1809TLM-A-LED

61 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight330 g
  • ColourBlack, White
  • Form factorBullet
  • Minimum illumination0.001 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
330 g
Colour
Black, White
Form factor
Bullet
Minimum illumination
0.001 lx
Brand
Dahua Technology
Model
DH-HAC-HFW1809TLM-A-LED
Part number
DH-HAC-HFW1809TLM-A-LED
Also known as
Dahua Technology Lite DH-HAC-HFW1809TLM-A-LED security camera Bullet CCTV security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/Wall/Pole

Specifications

61 specifications in 13 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourBlack, White
Housing materialMetal, Plastic
International Protection (IP) codeIP67
Fog proofYes

Camera

Minimum illumination0.001 lx
Angle of rotation360°
Lens viewing angle, horizontal85°
Lens viewing angle, vertical45°
Lens viewing angle, diagonal100°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceArea white balance, Auto
Camera shutter typeElectronic
Camera shutter speed1/4 - 1/100000 s
Number of Privacy masking areas8

Image sensor

Sensor typeCMOS
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom4x
Detect distance107.6 m
Observe distance43 m
Recognize distance21.5 m
Identify distance10.8 m
Maximum aperture number1
Closest focusing distance3.5 m
Fixed focal length3.6 mm

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Frame rate30 fps
Analog signal format systemNTSC, PAL
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (max)6.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Width198.4 mm
Depth80.2 mm
Height76.2 mm
Weight330 g

Packaging data

Package width240 mm
Package depth115 mm
Package height111 mm
Package weight490 g

Packaging content

Number of cameras1
