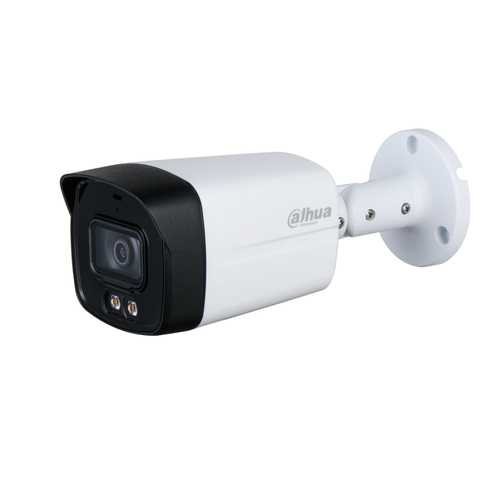

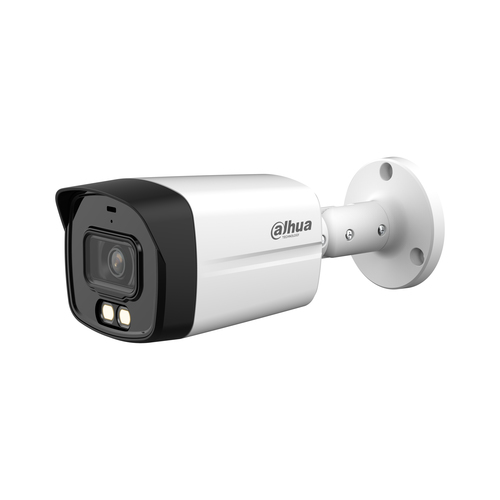

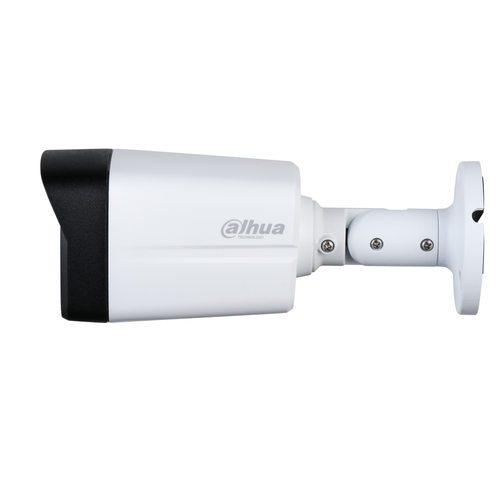

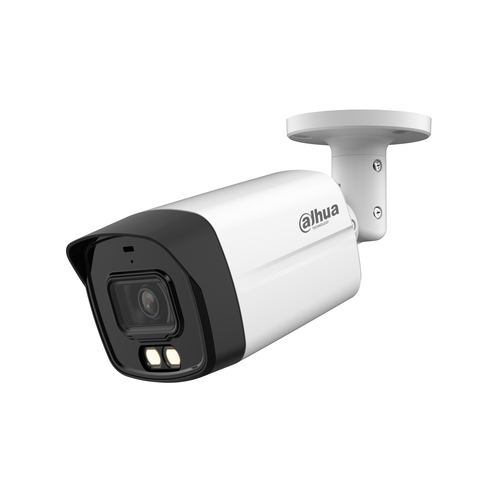

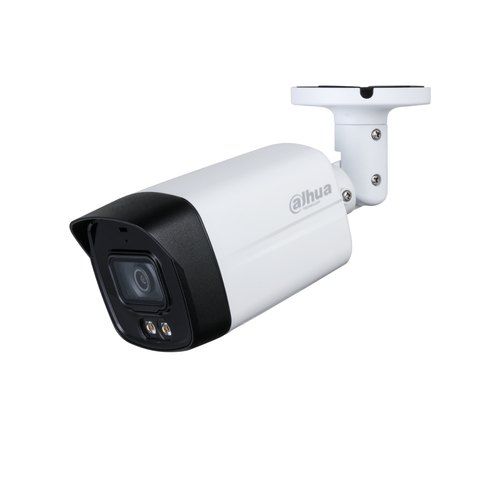

DH-HAC-HFW1801TLMN-IL-A security camera Bullet CCTV security camera Outdoor
3840 x 2160 pixels Ceiling/Wall/Pole
Model DH-HAC-HFW1801TLMN-IL-A
60 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight300 g
- ColourWhite
- Form factorBullet
- Minimum illumination0.001 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 300 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.001 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HFW1801TLMN-IL-A
- Part number
- DH-HAC-HFW1801TLMN-IL-A
- Also known as
- Dahua Technology DH-HAC-HFW1801TLMN-IL-A security camera Bullet CCTV security camera Outdoor 3840 x 2160 pixels Ceiling/Wall/Pole
Specifications
60 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.001 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Area white balance, Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/100000 s |
| Number of Privacy masking areas | 8 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 88 m |
| Observe distance | 35.2 m |
| Recognize distance | 17.6 m |
| Lens diameter | 2.8 mm |
| Identify distance | 8.8 m |
| Maximum aperture number | 2 |
| Closest focusing distance | 1.3 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Supported video modes | 1080p |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5.7 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 198.4 mm |
| Depth | 80.2 mm |
| Height | 76.2 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 480 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
