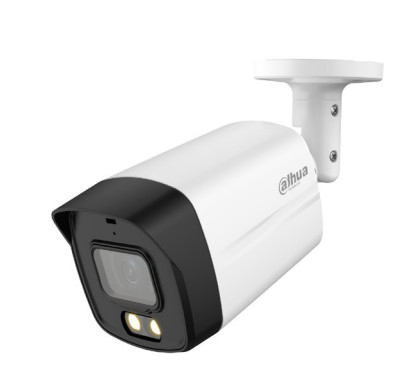

Lite DH-HAC-HFW1509TLMN-IL-A security camera Bullet CCTV security camera Indoor & outdoor
2880 x 1620 pixels Ceiling/wall
Model DH-HAC-HFW1509TLMN-IL-A
62 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight340 g
- ColourBlack, White
- Form factorBullet
- Minimum illumination0.0001 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 340 g
- Colour
- Black, White
- Form factor
- Bullet
- Minimum illumination
- 0.0001 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HFW1509TLMN-IL-A
- Part number
- DH-HAC-HFW1509TLMN-IL-A
- Also known as
- Dahua Technology Lite DH-HAC-HFW1509TLMN-IL-A security camera Bullet CCTV security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/wall
Specifications
62 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE (EN55032: 2015, EN61000-3-2: 2014, EN61000- 3-3: 2013, EN55024: 2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.0001 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/4 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Digital zoom | 4x |
| Lens diameter | 2.8 mm |
| Maximum aperture number | 1 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620 |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5.7 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 198.4 mm |
| Depth | 80.2 mm |
| Height | 76.2 mm |
| Weight | 340 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 240 mm |
| Package depth | 115 mm |
| Package height | 111 mm |
| Package weight | 510 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
