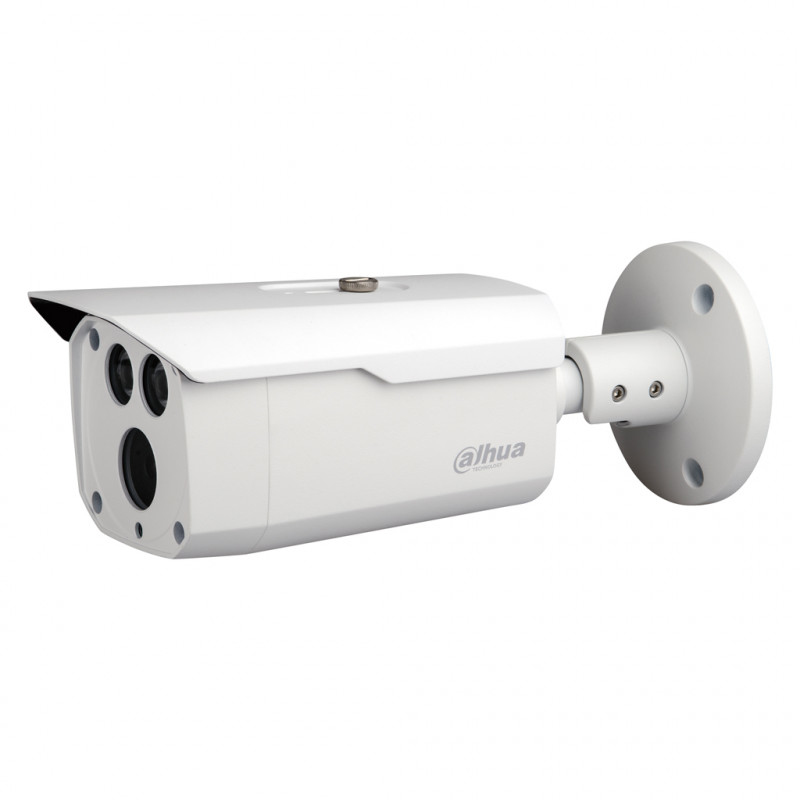

Lite DH-HAC-HFW1400D Box CCTV security camera Indoor & outdoor
2560 x 1440 pixels Wall
Model DH-HAC-HFW1400DPart no. DH-HAC-HFW1400DN-3.6MM-S2
50 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight580 g
- ColourWhite
- Form factorBox
- Minimum illumination0.03 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 580 g
- Colour
- White
- Form factor
- Box
- Minimum illumination
- 0.03 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HFW1400D
- Part number
- DH-HAC-HFW1400DN-3.6MM-S2
- Also known as
- Dahua Technology Lite DH-HAC-HFW1400D Box CCTV security camera Indoor & outdoor 2560 x 1440 pixels Wall
Specifications
50 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.03 lx |
| Lens viewing angle, horizontal | 76.4° |
| Lens viewing angle, vertical | 41.6° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/25 - 100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2560 x 1440 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 3.6 - 3.6 mm |
| Fixed focus | Yes |
| Maximum aperture number | 2 |
Night vision
| Specification | Value |
|---|---|
| Night vision | No |
| Night vision distance | 80 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 5.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 241.8 mm |
| Depth | 90.4 mm |
| Height | 90.4 mm |
| Weight | 580 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 700 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
