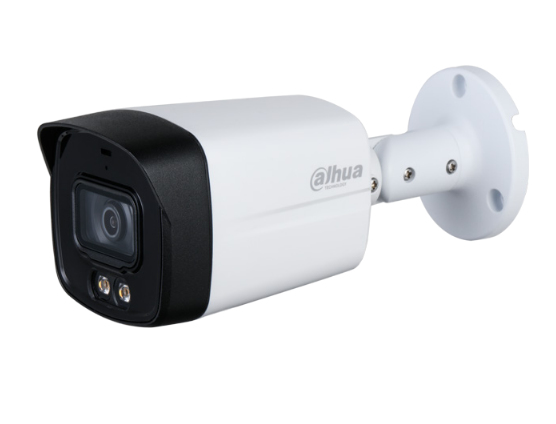

Dahua Technology Lite DH-HAC-HFW1239TLM-A-LED Bullet CCTV security camera Indoor & outdoor
Dahua Technology

Lite DH-HAC-HFW1239TLM-A-LED Bullet CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model DH-HAC-HFW1239TLM-A-LEDPart no. HAC-HFW1239TLM-A-LED-0360BEAN 6923172506122

67 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • ColourWhite
  • Form factorBullet
  • Camera pan controlYes
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Colour
White
Form factor
Bullet
Camera pan control
Yes
Sensor type
CMOS
Brand
Dahua Technology
Model
DH-HAC-HFW1239TLM-A-LED
Part number
HAC-HFW1239TLM-A-LED-0360B
EAN / UPC
6923172506122, 6939554973161
Also known as
Dahua Technology Lite DH-HAC-HFW1239TLM-A-LED Bullet CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

67 specifications in 15 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Languages supportMulti
CertificationCE (EN55032, EN55024, EN50130-4, EN60950-1) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Angle of rotation360°
Lens viewing angle, horizontal86.9°
Lens viewing angle, vertical46.3°
Lens viewing angle, diagonal103.6°
Tilt angle range0 - 180°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter speedPAL: 1/25 - 1/100000; NTSC: 1/30 - 1/100000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom16x
Detect distance55.2 m
Observe distance22.1 m
Recognize distance11 m
Identify distance5.5 m
Maximum aperture number1.6
Closest focusing distance1.2 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance40 m

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Noise reductionYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (max)5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width198.4 mm
Depth80.2 mm
Height76.2 mm

Packaging content

Number of cameras1
