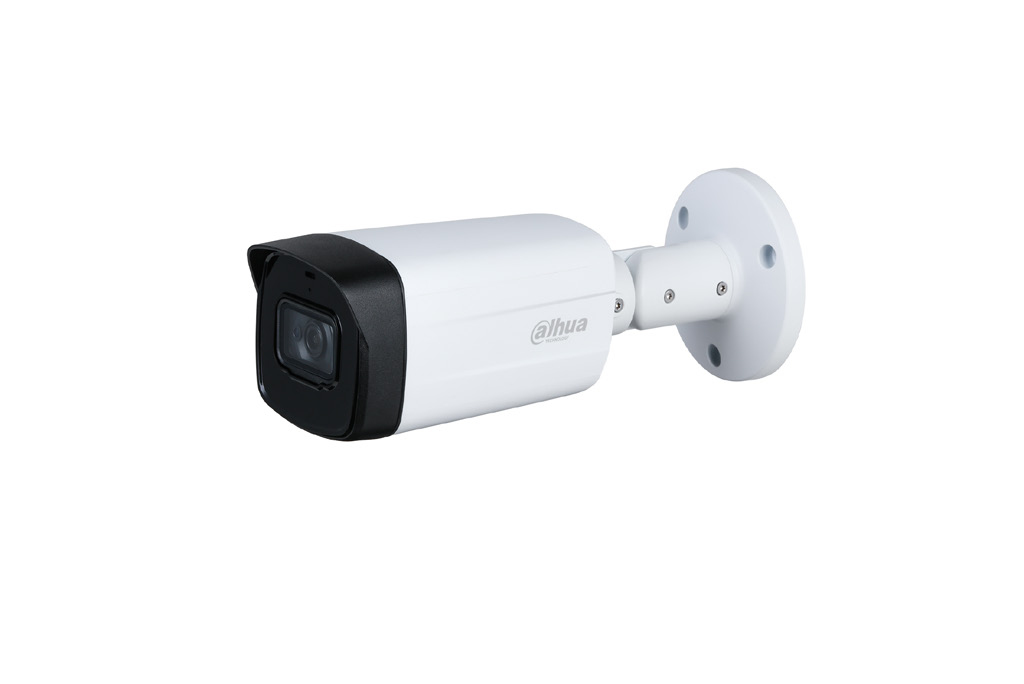

Lite DH-HAC-HFW1230TH-I8 Bullet CCTV security camera Outdoor
1920 x 1080 pixels Ceiling/wall
Model DH-HAC-HFW1230TH-I8Part no. HAC-HFW1230TH-I8
63 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight410 g
- ColourWhite
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 410 g
- Colour
- White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HFW1230TH-I8
- Part number
- HAC-HFW1230TH-I8
- Also known as
- Dahua Technology Lite DH-HAC-HFW1230TH-I8 Bullet CCTV security camera Outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
63 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC 15 B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 86.9° |
| Lens viewing angle, vertical | 46.3° |
| Lens viewing angle, diagonal | 103.6° |
| Tilt angle range | 0 - 180° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/25–1/100000, 1/30–1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 55.2 m |
| Observe distance | 22.1 m |
| Recognize distance | 11 m |
| Identify distance | 5.5 m |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 80 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Gain control type | Auto/Manual |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Privacy masking | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.7 mm |
| Depth | 90.4 mm |
| Length | 240.7 mm |
| Weight | 410 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 616 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
