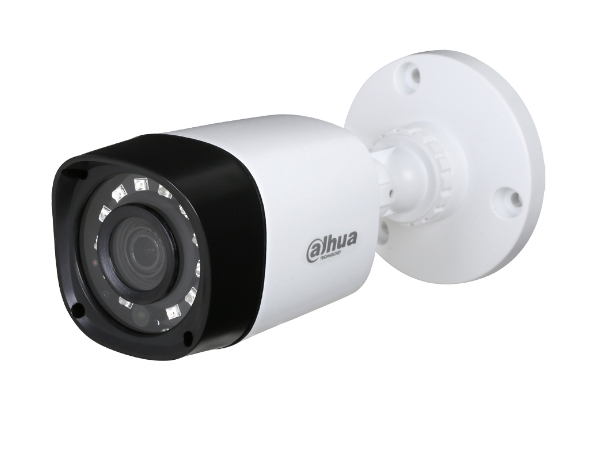

Lite DH-HAC-HFW1100R Bullet CCTV security camera Indoor & outdoor
1280 x 720 pixels Ceiling/Wall/Pole
Model DH-HAC-HFW1100RPart no. HAC-HFW1100RP-0360BEAN 6939554906312
66 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight200 g
- ColourWhite
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 200 g
- Colour
- White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HFW1100R
- Part number
- HAC-HFW1100RP-0360B
- EAN / UPC
- 6939554906312
- Also known as
- Dahua Technology Lite DH-HAC-HFW1100R Bullet CCTV security camera Indoor & outdoor 1280 x 720 pixels Ceiling/Wall/Pole
Specifications
66 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Languages support | Simplified Chinese, German, English, Estonian, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages | 11 |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.05 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 72.3° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/25 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Fixed focus | Yes |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 720 pixels |
| Total megapixels | 1 MP |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Supported video modes | 720p |
| Frame rate | 25 fps |
| Analog signal format system | PAL |
| Noise reduction | Yes |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Composite video out | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 2.8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 154.3 mm |
| Depth | 69.8 mm |
| Height | 69.8 mm |
| Weight | 200 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 270 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
