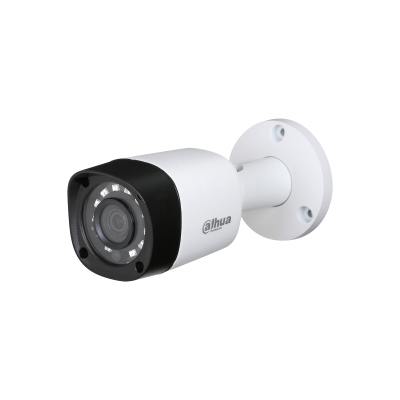

Lite DH-HAC-HFW1000RM security camera Bullet CCTV security camera Indoor & outdoor
1280 x 720 pixels Wall
Model DH-HAC-HFW1000RM
65 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight300 g
- ColourBlack, White
- Form factorBullet
- Minimum illumination0.05 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 300 g
- Colour
- Black, White
- Form factor
- Bullet
- Minimum illumination
- 0.05 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HFW1000RM
- Part number
- DH-HAC-HFW1000RM
- Also known as
- Dahua Technology Lite DH-HAC-HFW1000RM security camera Bullet CCTV security camera Indoor & outdoor 1280 x 720 pixels Wall
Specifications
65 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Maximum operating distance | 19 m |
| Day/night mode | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | Black, White |
| Housing material | Aluminium |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.05 lx |
| Field of view (FOV) angle | 60° |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1280 x 720 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Closest focusing distance | 0.6 m |
| Fixed focal length | 3.6 mm |
| Normal focusing range | 0.6 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 720 pixels |
| Total megapixels | 1 MP |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction, Ultra 2D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| Interface | BNC |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 2.8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 70 mm |
| Height | 70 mm |
| Length | 156.3 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 370 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
