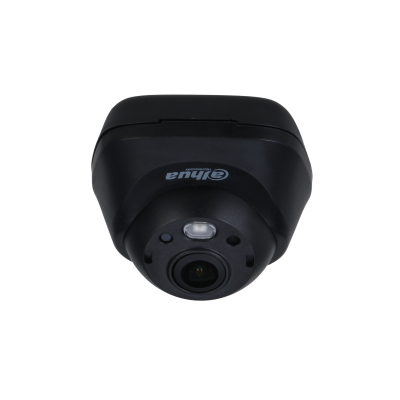

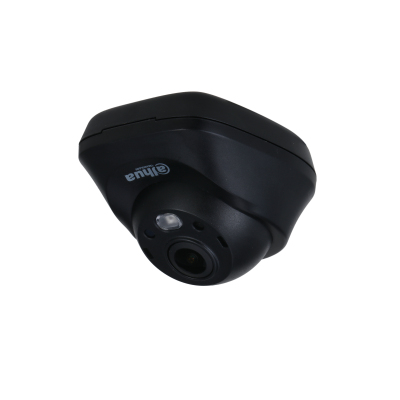

Micro-size DH-HAC-HDW3200LN security camera Dome IP security camera
1920 x 1080 pixels Ceiling
Model DH-HAC-HDW3200LN
69 specifications
- ConnectivityWired
- TypeIP security camera
- Weight90 g
- ColourBlack
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 90 g
- Colour
- Black
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDW3200LN
- Part number
- DH-HAC-HDW3200LN
- Also known as
- Dahua Technology Micro-size DH-HAC-HDW3200LN security camera Dome IP security camera 1920 x 1080 pixels Ceiling
Specifications
69 specifications in 20 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Certification | CE/FCC, UL, EN50155 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black |
| Housing material | Plastic |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 132° |
| Lens viewing angle, vertical | 69° |
| Lens viewing angle, diagonal | 164° |
| Tilt angle range | 0 - 55° |
| Pan range | 0 - 40° |
| White balance | Auto, Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Panoramic camera
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 65 dB |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 35.5 m |
| Observe distance | 14.2 m |
| Recognize distance | 7.1 m |
| Identify distance | 3.5 m |
| Closest focusing distance | 0.5 m |
| Fixed focal length | 2.1 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 3 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 1.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | 0 - 95 °C |
| Operating relative humidity (H-H) | -40 - 60% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60.9 mm |
| Depth | 71.6 mm |
| Height | 45.9 mm |
| Weight | 90 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 170 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Other features
| Specification | Value |
|---|---|
| F-number (relative aperture) | 2 |
Technical details
| Specification | Value |
|---|---|
| Lens mount interface | M12 |
