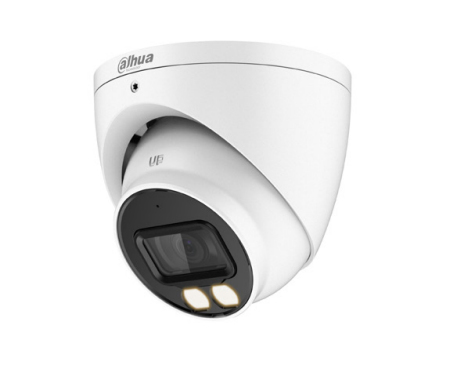

Pro DH-HAC-HDW2249TN-A-LED security camera Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model DH-HAC-HDW2249TN-A-LED
63 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight480 g
- ColourWhite
- Form factorDome
- Minimum illumination0.0002 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 480 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.0002 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDW2249TN-A-LED
- Part number
- DH-HAC-HDW2249TN-A-LED
- Also known as
- Dahua Technology Pro DH-HAC-HDW2249TN-A-LED security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
63 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Dynamic range | 120 dB |
| Certification | CE, FCC, UL |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.0002 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/4 – 1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 55.2 m |
| Observe distance | 22.1 m |
| Recognize distance | 11 m |
| Focal length range | 3.6 mm |
| Identify distance | 5.5 m |
| Maximum aperture number | 1 |
| Closest focusing distance | 1.7 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 960 x 960, 960 x 480, 960 x 576, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Analog signal format system | NTSC |
| NTSC resolutions | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5.8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 93.6 mm |
| Diameter | 10.6 cm |
| Weight | 480 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 630 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
