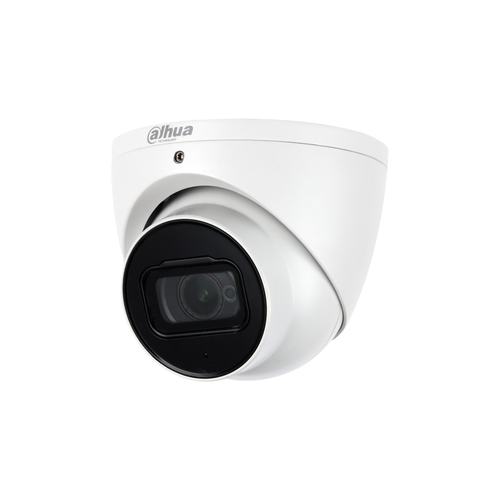

Pro DH-HAC-HDW2249T-A security camera Dome IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model DH-HAC-HDW2249T-A
51 specifications
- ConnectivityWired
- TypeIP security camera
- Weight480 g
- ColourWhite
- Form factorDome
- Minimum illumination0.001 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 480 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.001 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDW2249T-A
- Part number
- DH-HAC-HDW2249T-A
- Also known as
- Dahua Technology Pro DH-HAC-HDW2249T-A security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
51 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4), FCC (CFR 47 FCC 15 subpartB, ANSI C63.4-2014), UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.001 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 70° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/4 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Auto focus | Yes |
| Fixed focus | Yes |
| Focus | Manual |
| Maximum aperture number | 1 |
| Closest focusing distance | 1.6 m |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | No |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
| Voice codecs | AGC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 2.4 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 99.2 mm |
| Diameter | 10.6 cm |
| Weight | 480 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 650 g |
