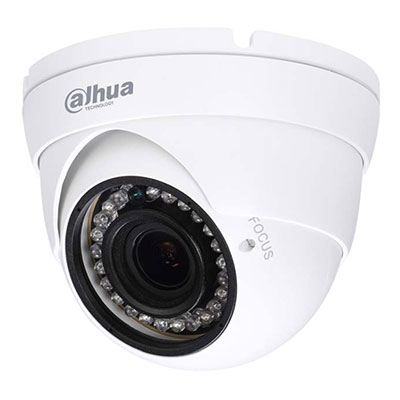

Lite DH-HAC-HDW2220RP-VF security camera Dome CCTV security camera Indoor & outdoor Ceiling/wall
Model DH-HAC-HDW2220RP-VFEAN 6939554901133
49 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight550 g
- ColourWhite
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 550 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDW2220RP-VF
- Part number
- DH-HAC-HDW2220RP-VF
- EAN / UPC
- 6939554901133
- Also known as
- Dahua Technology Lite DH-HAC-HDW2220RP-VF security camera Dome CCTV security camera Indoor & outdoor Ceiling/wall
Specifications
49 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 500 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Acrylonitrile styrene acrylate (ASA), Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 93° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of effective pixels (H x V) | 1984 x 1225 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.7 - 12 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Total megapixels | 2.4 MP |
| Supported video modes | 720p, 1080p |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 4.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 119 mm |
| Depth | 119 mm |
| Height | 97.4 mm |
| Weight | 550 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
