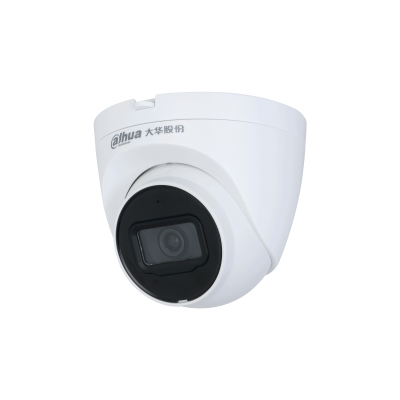

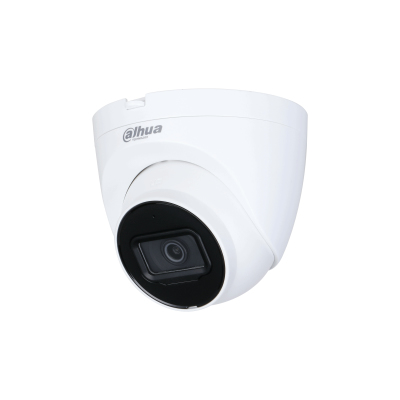

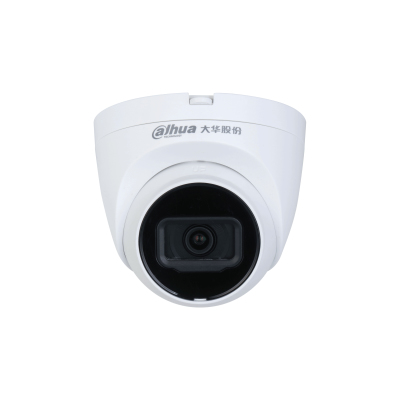

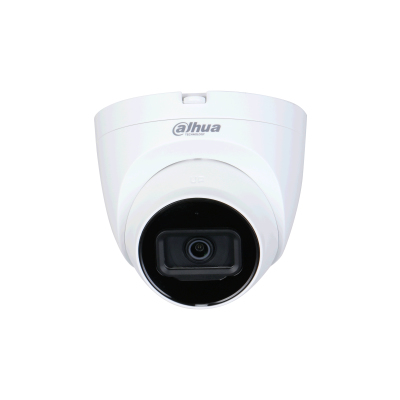

Lite DH-HAC-HDW1801TQN-A security camera Dome CCTV security camera Indoor & outdoor
3840 x 2160 pixels Ceiling/Wall/Pole
Model DH-HAC-HDW1801TQN-A
66 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight320 g
- ColourWhite
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 320 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDW1801TQN-A
- Part number
- DH-HAC-HDW1801TQN-A
- Also known as
- Dahua Technology Lite DH-HAC-HDW1801TQN-A security camera Dome CCTV security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/Wall/Pole
Specifications
66 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Certification | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 106° |
| Lens viewing angle, vertical | 56° |
| Lens viewing angle, diagonal | 125° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Area white balance, Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30 –1/100000 |
| Number of Privacy masking areas | 8 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 2 |
| Detect distance | 88 m |
| Observe distance | 35.2 m |
| Recognize distance | 17.6 m |
| Identify distance | 8.8 m |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
| Identify distance (tele) | 10.7 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620, 3860 x 2160 |
| Frame rate | 30 fps |
| Analog signal format system | NTSC |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoC |
| Power consumption (max) | 4.8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 109.9 mm |
| Diameter | 11 cm |
| Weight | 320 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 147 mm |
| Package depth | 138 mm |
| Package height | 135 mm |
| Package weight | 490 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
