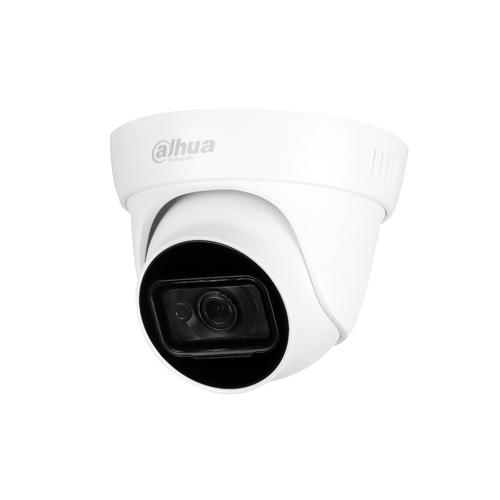

Lite Plus DH-HAC-HDW1801TLN-A-0280B security camera Turret CCTV security camera Indoor & outdoor
3840 x 2160 pixels Ceiling
Model DH-HAC-HDW1801TLN-A-0280B
60 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight300 g
- ColourBlack, White
- Form factorTurret
- Minimum illumination0.03 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 300 g
- Colour
- Black, White
- Form factor
- Turret
- Minimum illumination
- 0.03 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDW1801TLN-A-0280B
- Part number
- DH-HAC-HDW1801TLN-A-0280B
- Also known as
- Dahua Technology Lite Plus DH-HAC-HDW1801TLN-A-0280B security camera Turret CCTV security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
Specifications
60 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Certification | CE (EN55032, EN55024, EN50130-4), FCC, UL |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
| Fog proof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.03 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Number of effective pixels (H x V) | 3840 x 2160 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.8 mm |
| Maximum aperture number | 2 |
| Closest focusing distance | 1 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 4 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 2560 x 1440, 2592 x 1944, 3840 x 2160 |
| Frame rate | 30 fps |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| Microphone in | Yes |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5.2 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 85.8 mm |
| Diameter | 9.7 cm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 380 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
