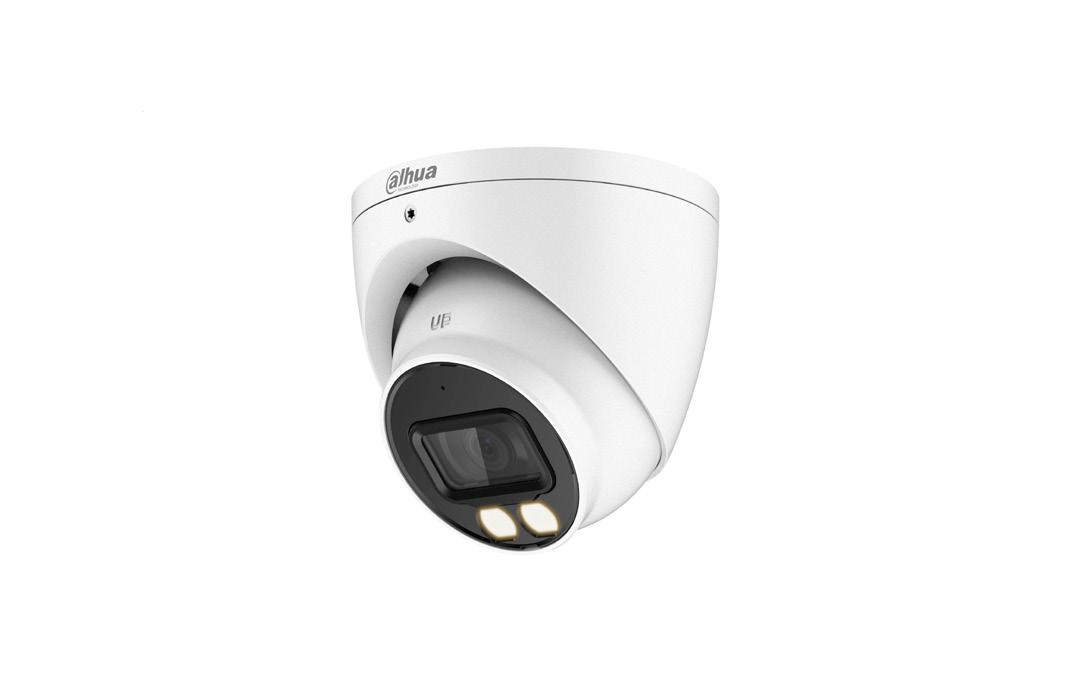

Dahua Technology Lite DH-HAC-HDW1509TN-IL-A security camera Turret CCTV security camera Indoor & outdoor
Dahua Technology

Lite DH-HAC-HDW1509TN-IL-A security camera Turret CCTV security camera Indoor & outdoor

2880 x 1620 pixels Ceiling/Wall/Pole

Model DH-HAC-HDW1509TN-IL-A

63 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight490 g
  • ColourBlack, White
  • Form factorTurret
  • Minimum illumination0.0001 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
490 g
Colour
Black, White
Form factor
Turret
Minimum illumination
0.0001 lx
Brand
Dahua Technology
Model
DH-HAC-HDW1509TN-IL-A
Part number
DH-HAC-HDW1509TN-IL-A
Also known as
Dahua Technology Lite DH-HAC-HDW1509TN-IL-A security camera Turret CCTV security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/Wall/Pole

Specifications

63 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
CertificationCE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Design

Form factorTurret
Mounting typeCeiling/Wall/Pole
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.0001 lx
Angle of rotation360°
Lens viewing angle, horizontal111°
Lens viewing angle, vertical57°
Lens viewing angle, diagonal131°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/4 - 1/100000 s

Image sensor

Sensor typeCMOS
Progressive scanYes

Lens system

Zoom capabilityYes
Digital zoom4x
Focal length range2.8 - 3.6 mm
Maximum aperture number1
Closest focusing distance1.5 m

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Supported graphics resolutions960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620
Frame rate30 fps
Analog signal format systemNTSC
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)5.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Height93.6 mm
Diameter10.6 cm
Weight490 g

Packaging data

Package width148 mm
Package depth139 mm
Package height137 mm
Package weight660 g

Packaging content

Number of cameras1
