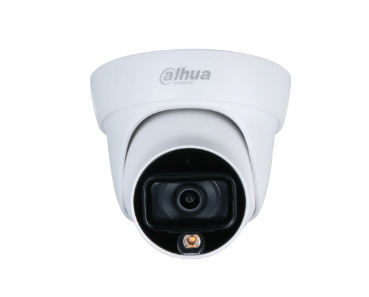

Lite DH-HAC-HDW1509TL(-A)-LED security camera Dome CCTV security camera Indoor & outdoor
2592 x 1944 pixels Ceiling
Model DH-HAC-HDW1509TL(-A)-LED
64 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight220 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 220 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDW1509TL(-A)-LED
- Part number
- DH-HAC-HDW1509TL(-A)-LED
- Also known as
- Dahua Technology Lite DH-HAC-HDW1509TL(-A)-LED security camera Dome CCTV security camera Indoor & outdoor 2592 x 1944 pixels Ceiling
Specifications
64 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Certification | CE (EN55032, EN55024, EN50130-4,EN60950-1)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 83° |
| Lens viewing angle, vertical | 56° |
| Lens viewing angle, diagonal | 111° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | PAL: 1/25–1/100000, NTSC: 1/30–1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2592 x 1944 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Fixed focus | Yes |
| Maximum aperture number | 1.2 |
| Closest focusing distance | 2.1 m |
| Fixed focal length | 3.6 mm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Supported graphics resolutions | 704 x 480, 704 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2592 x 1944 |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 3 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 85.8 mm |
| Diameter | 9.7 cm |
| Weight | 220 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 280 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
