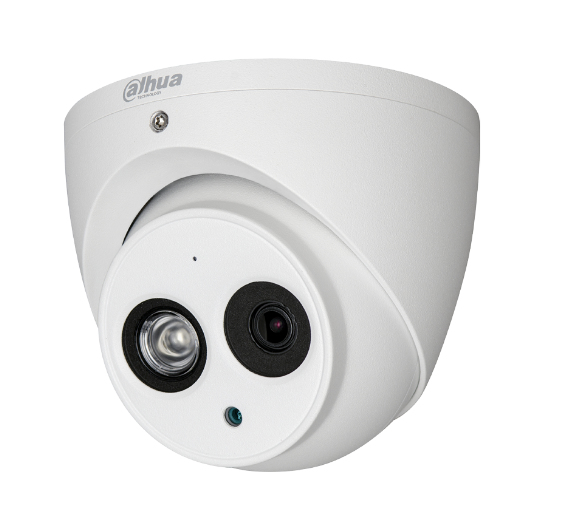

Dahua Technology Lite DH-HAC-HDW1220EM-A Dome CCTV security camera Indoor & outdoor
Dahua Technology

Lite DH-HAC-HDW1220EM-A Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-HAC-HDW1220EM-APart no. HAC-HDW1220EMP-A-0360BEAN 6939554906763

66 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight440 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
440 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HDW1220EM-A
Part number
HAC-HDW1220EMP-A-0360B
EAN / UPC
6939554906763
Also known as
Dahua Technology Lite DH-HAC-HDW1220EM-A Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

66 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Remote viewingYes
Languages supportSimplified Chinese, German, English, Estonian, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Number of languages11
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.02 lx
Angle of rotation360°
Lens viewing angle, horizontal82.8°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter speed1/25 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.9 mm (1 / 2.9")
Progressive scanYes

Lens system

Number of lenses1
Fixed focusYes
Maximum aperture number2
Closest focusing distance0.8 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate25 fps
Analog signal format systemPAL
Noise reductionYes
Gain control typeAuto
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

Composite video out1

Power

Power source typeDC
Power consumption (max)2.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Height93.7 mm
Diameter10.6 cm
Weight440 g

Packaging data

Package weight580 g

Packaging content

Number of cameras1
