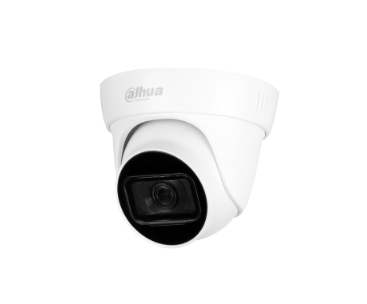

Dahua Technology Lite DH-HAC-HDW1200TLN-A-0280B-S5 security camera Dome CCTV security camera Indoor & outdoor

Dahua Technology Lite DH-HAC-HDW1200TLN-A-0280B-S5 security camera Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model DH-HAC-HDW1200TLN-A-0280B-S5

74 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight220 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
220 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HDW1200TLN-A-0280B-S5
Part number
DH-HAC-HDW1200TLN-A-0280B-S5
Also known as
Dahua Technology Lite DH-HAC-HDW1200TLN-A-0280B-S5 security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

74 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Remote viewingYes
Languages supportSimplified Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Number of languages11
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialPlastic
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal119°
Lens viewing angle, vertical101°
Lens viewing angle, diagonal54°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/25 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Detect distance38.6 m
Observe distance15.4 m
Recognize distance7.7 m
Identify distance3.9 m
Maximum aperture number1.9
Closest focusing distance0.9 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance20 m
LED typeIR
Number of illumination LEDs12

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate25 fps
Analog signal format systemPAL
Noise reductionYes
Gain control typeAuto
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

Composite video out1

Power

Power source typeDC
Power consumption (max)3.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height86.8 mm
Diameter9.7 cm
Weight220 g

Packaging data

Package weight280 g

Packaging content

Number of cameras1
