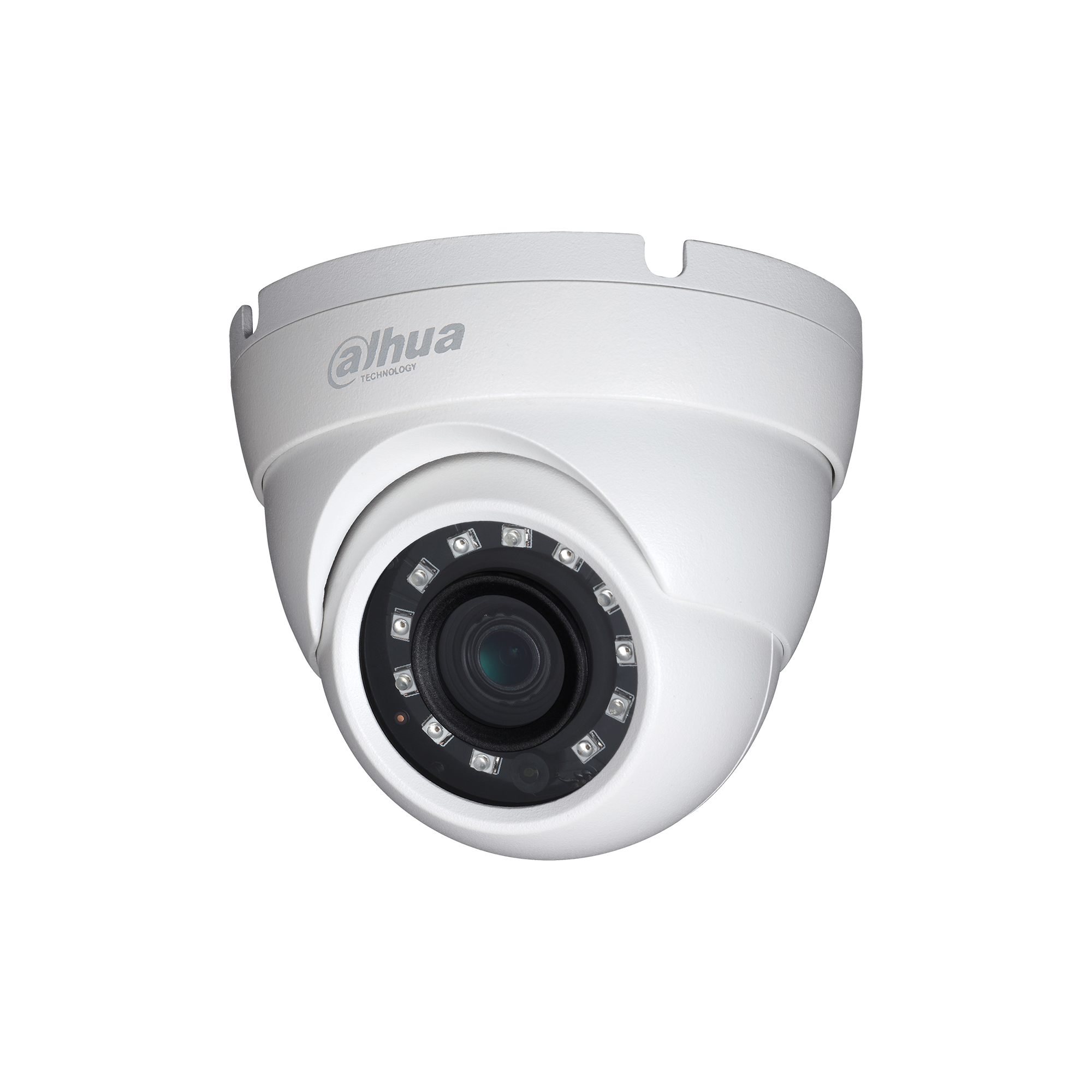

DH-HAC -HDW1000MN-0280B-S3 security camera Dome Indoor & outdoor
1280 x 720 pixels Ceiling/wall
Model DH-HAC-HDW1000MN-0280B-S3
46 specifications
- ConnectivityWired
- TypeDome
- Weight280 g
- ColourBlack, White
- Placement supportedIndoor & outdoor
- Angle of rotation360°
Overview
- Connectivity
- Wired
- Type
- Dome
- Weight
- 280 g
- Colour
- Black, White
- Placement supported
- Indoor & outdoor
- Angle of rotation
- 360°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDW1000MN-0280B-S3
- Part number
- DH-HAC-HDW1000MN-0280B-S3
- Also known as
- Dahua Technology DH-HAC -HDW1000MN-0280B-S3 security camera Dome Indoor & outdoor 1280 x 720 pixels Ceiling/wall
Specifications
46 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 83.4° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/30 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
| Number of effective pixels (H x V) | 1280 x 720 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.8 mm |
| Maximum aperture number | 2 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 12 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 720 pixels |
| Total megapixels | 1 MP |
| Frame rate | 30 fps |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 2.8 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 79.4 mm |
| Diameter | 9.34 cm |
| Weight | 280 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 350 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
