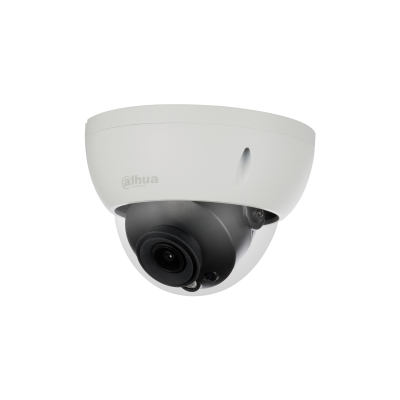

Pro DH-HAC-HDBW2802R Dome CCTV security camera Indoor & outdoor
3840 x 2160 pixels Ceiling/wall
Model DH-HAC-HDBW2802RPart no. HAC-HDBW2802RP-0280BEAN 6939554933004
66 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight410 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 410 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-HDBW2802R
- Part number
- HAC-HDBW2802RP-0280B
- EAN / UPC
- 6939554933004
- Also known as
- Dahua Technology Pro DH-HAC-HDBW2802R Dome CCTV security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall
Specifications
66 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Multi |
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 110.8° |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/4 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 84 m |
| Observe distance | 34 m |
| Recognize distance | 17 m |
| Identify distance | 8 m |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 1.8 m |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Analog signal format system | PAL |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | 1-way |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 7 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 88.9 mm |
| Diameter | 12.2 cm |
| Weight | 410 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 590 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
